Removal [12/2021 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)

    Refer to PROCEDURE - Step 30

  2. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)

    Refer to PROCEDURE - Step 31

  3. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)
    Refer to PROCEDURE - Step 32
  4. REMOVE NO. 1 DEFROSTER NOZZLE GARNISH
    Refer to PROCEDURE - Step 38

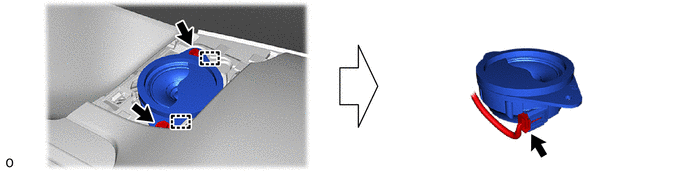

  5. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for Side)
    NOTE:

    Do not touch the cone of the front No. 3 speaker assembly.
    1. GTY1071165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

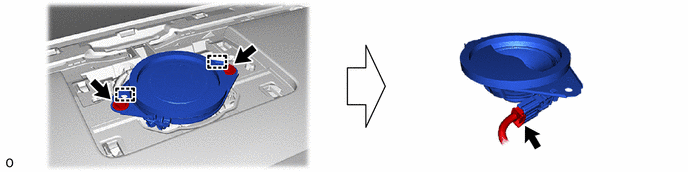

  6. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (for Center)
    NOTE:

    Do not touch the cone of the front No. 4 speaker assembly.
    1. GTY1071157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
