Removal [12/2021 - ]: Procedure

  1. REMOVE NO. 2 INSTRUMENT SIDE PANEL

    Refer to PROCEDURE - Step 12

  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 14

  3. REMOVE LIGHT CONTROL RHEOSTAT (TRIP SWITCH)

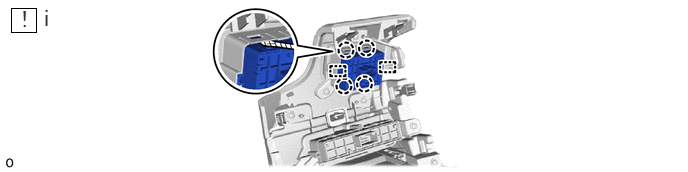

    1. GTY1072198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw and guide and remove the trip switch.

        HINT:

        Tape the thin-bladed screwdriver tip before use.
