Installation [06/2019 - 05/2023]: Procedure

  1. INSTALL COOLER CONDENSER ASSEMBLY
    1. Install the radiator assembly (for inverter coolant) to the cooler condenser assembly with the 2 bolts.
      GTY806075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.0 N.m (92 kgf/cm, 80 in.lbf)

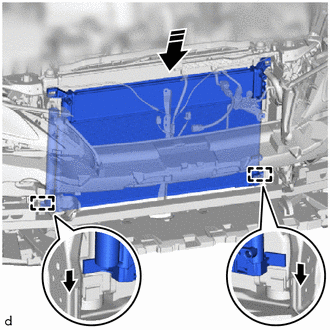

    2. Insert the cooler condenser assembly and radiator assembly (for inverter coolant) into the vehicle and into the guide.
      NOTE:

      When inserting the cooler condenser assembly and radiator assembly (for Inverter Coolant), do not damage the cooler condenser assembly, radiator assembly (for Inverter Coolant) and radiator assembly.

      GTY793175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      HINT:

      If the cooler condenser assembly is replaced with a new one, add compressor oil to the new cooler condenser assembly.

      Capacity

      40 cc (1.35 fl.oz)

      Compressor Oil

      ND-OIL 11 or equivalent

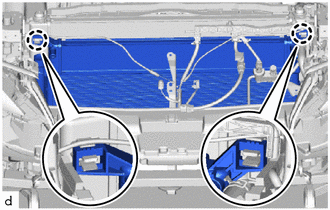

    3. Attach the claw to install the cooler condenser assembly with radiator assembly (for inverter coolant).
      GTY785521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the discharge hose sub-assembly and the connecting part of the cooler condenser assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the hose joint.

      Compressor Oil

      ND-OIL 11 or equivalent

      NOTE:

      Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in leakage of electric power.

    3. Install the O-ring to the discharge hose sub-assembly.
      GTY806070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Keep the O-rings and O-ring fitting surfaces free of foreign matter.

    4. Connect the discharge hose sub-assembly to the cooler condenser assembly with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      NOTE:
      • Do not apply excessive force to the discharge hose sub-assembly.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
  3. CONNECT LIQUID TUBE SUB-ASSEMBLY A
    1. Remove the vinyl tape from the liquid tube sub-assembly A and the connecting part of the cooler condenser assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the tube joint.

      Compressor Oil

      ND-OIL 11 or equivalent

      NOTE:

      Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in leakage of electric power.

    3. Install the O-ring to the liquid tube sub-assembly A.

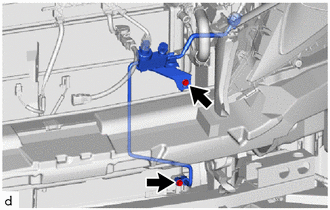

      GTY806069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Keep the O-rings and O-ring fitting surfaces free of foreign matter.

    4. Connect the liquid tube sub-assembly A and No. 1 cooler refrigerant hose bracket to the cooler condenser assembly with the 2 bolts.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      NOTE:
      • Do not apply excessive force to the liquid tube sub-assembly A.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
  4. CONNECT NO. 3 INVERTER COOLING HOSE
    1. Connect the No. 3 inverter cooling hose with its marking aligned with the positioning rib as shown in the illustration and install the hose clips within the range shown in the illustration.
      NOTE:
      • Do not apply excessive force to the radiator assembly (for inverter coolant) or No. 3 inverter cooling hose.
      • Make sure the hose is securely inserted to the stopper. However, If the end of the hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.
      • Install the hose clips 2 to 5 mm (0.0787 to 0.1969 in.) away from the end of the hose.
      GTY799893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Yellow)
      *c Hose Clip Installation Angle (120°)
  5. CONNECT NO. 2 INVERTER COOLING HOSE

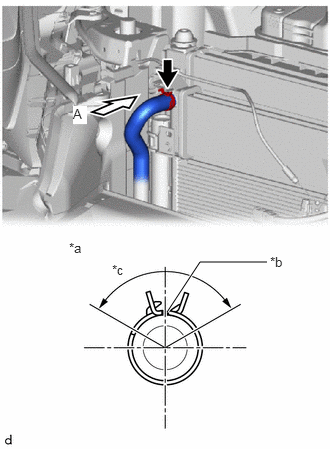

    1. Connect the No. 2 inverter cooling hose with its marking aligned with the positioning rib as shown in the illustration and install the hose clips within the range shown in the illustration.
      NOTE:
      • Do not apply excessive force to the radiator assembly (for inverter coolant) or No. 2 inverter cooling hose.
      • Make sure the hose is securely inserted to the stopper. However, If the end of the hose is cut diagonally, it is acceptable for the entire circumference of the tip to not contact the stopper.
      • Install the hose clips 2 to 5 mm (0.0787 to 0.1969 in.) mm away from the end of the hose.
      GTY807342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A
      *b Marking (Yellow)
      *c Hose Clip Installation Angle (120°)
  6. INSTALL UPPER RADIATOR SUPPORT
    1. Attach the upper radiator support to the 2 radiator support cushions and install the upper radiator support with the 5 bolts as shown in the illustration.

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

      GTY816584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Radiator Support Cushion
      Install in this Direction
      NOTE:

      When installing the upper radiator support, do not damage the cooler condenser assembly, radiator assembly (for Inverter coolant) and radiator assembly.

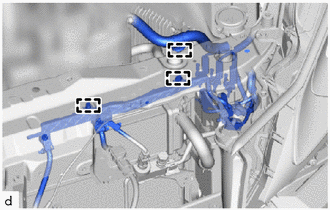

    2. Attach the clamp to connect the engine room main wire.
      GTY785505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
    1. Install the radiator support to crossmember brace sub-assembly RH with the 2 bolts.
      GTY785506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

  8. INSTALL RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
    1. Install the radiator support to crossmember brace sub-assembly LH with the 2 bolts.
      GTY829550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

  9. INSTALL LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH

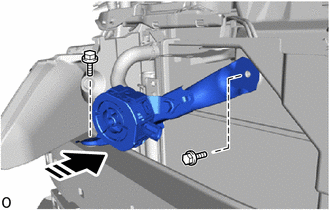

    1. Install the lower arm bracket brace sub-assembly RH with the 2 bolts.
      GTY950854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

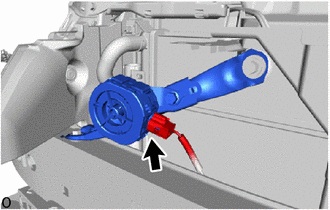

    2. Connect the connector.
      GTY950401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH
    1. Install the lower arm bracket brace sub-assembly LH with the 2 bolts.
      GTY785508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

  11. INSTALL LOW PITCHED HORN ASSEMBLY

    Refer to PROCEDURE - Step 1

  12. INSTALL HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 2

  13. INSTALL HOOD LOCK CONTROL CABLE COVER LH

    Refer to PROCEDURE - Step 3

  14. INSTALL HOOD LOCK CONTROL CABLE COVER RH
    1. Attach the clamp and install the hood lock control cable cover RH.
      GTY779548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 5

  16. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [01/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

  17. ADD COOLANT (for Inverter)

    Refer to PROCEDURE - Step 3

  18. INSPECT FOR COOLANT LEAK (for Inverter)

    Refer to PROCEDURE - Step 1

  19. INSTALL ENGINE UNDER COVER REINFORCEMENT

    Refer to PROCEDURE - Step 12 [01/2017 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - ]

  20. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION [01/2017 - 05/2023]

  21. INSPECT FITTING OF HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  22. ADJUST HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  23. INSTALL HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 4

  24. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 2

  25. WARM UP COMPRESSOR

    Refer to PROCEDURE - Step 3

  26. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 4

  27. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - 05/2023]

  28. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [01/2017 - 04/2020] , or refer to DTC CHECK / CLEAR [04/2020 - ]

  29. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [01/2017 - 04/2020] , or refer to OPERATION CHECK [04/2020 - ]
