Installation [01/2017 - 05/2023]: Procedure

  1. INSTALL RACK AND PINION POWER STEERING GEAR ASSEMBLY
    1. Install the rack and pinion power steering gear assembly with the 4 bolts and 4 nuts.

      Torque: 55 N.m (561 kgf/cm, 41 ft.lbf)

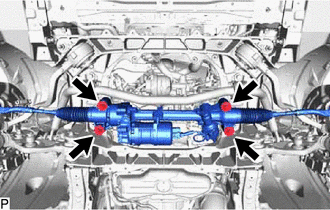

      GTY784389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the wire harness clamp to the rack and pinion power steering gear assembly.

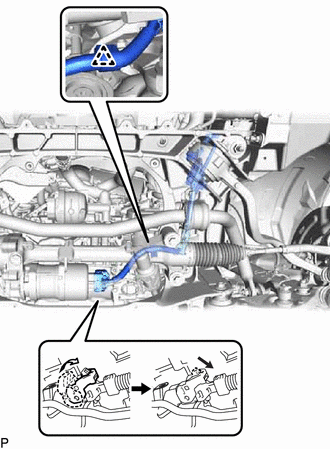

      GTY784220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the wire harness connector to the rack and pinion power steering gear assembly.

      HINT:

      When connecting the connector with lock lever, return the lock lever to its original position and securely push in the lock of the lock lever as shown in the illustration.

  2. CONNECT TIE ROD ASSEMBLY LH
    1. Connect the tie rod assembly LH to the front lower ball joint assembly with the nut.

      Torque: 60 N.m (612 kgf/cm, 44 ft.lbf)

    2. Install a new clip.
      NOTE:

      Further tighten the nut up to 60° if the holes for the clip are not aligned.

  3. CONNECT TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  4. CONNECT STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY
    1. Align the matchmarks on the steering sliding with shaft yoke sub-assembly with the matchmarks on the power steering link assembly.

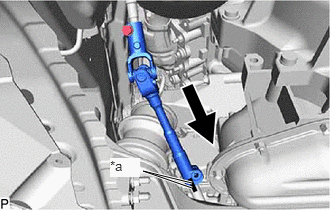

      GTY785003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Install the bolt (B) and tighten the bolt (A).

      Torque: 35.3 N.m (360 kgf/cm, 26 ft.lbf)

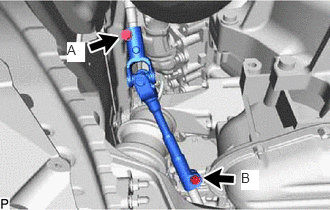

      GTY811548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 113 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 113 [06/2019 - 05/2023]

  6. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 114 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 114 [06/2019 - 05/2023]

  7. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 115 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 115 [06/2019 - 05/2023]

  8. INSTALL FRONT WHEELS

    Refer to INSTALLATION [01/2017 - 05/2023]

  9. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  10. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:
  11. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - 05/2023]

  12. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [01/2017 - 04/2020] , or refer to ADJUSTMENT [04/2020 - 05/2023]

  13. ROTATION ANGLE SENSOR INITIALIZATION AND TORQUE SENSOR ZERO POINT CALIBRATION

    Refer to CALIBRATION [01/2017 - ]

  14. PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION (w/ VGRS)

    Refer to CALIBRATION [01/2017 - ]
