Removal [01/2017 - ]: Procedure
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 8 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 8 [05/2023 - ]
- REMOVE RADIATOR SUPPORT TO FRAME SEAL RH
- REMOVE ENGINE ROOM SIDE COVER LH
- REMOVE LOWER RADIATOR AIR DEFLECTOR
- REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 14 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 14 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 14 [05/2023 - ]
- REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 15 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 15 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 15 [05/2023 - ]
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 4
- REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
- REMOVE NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 7
- REMOVE AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 6 [01/2017 - 05/2023] , or refer to PROCEDURE - Step 6 [05/2023 - ]
- REMOVE OIL PUMP MOTOR CONTROLLER ASSEMBLY
- REMOVE HEATER ACCESSORY ASSEMBLY

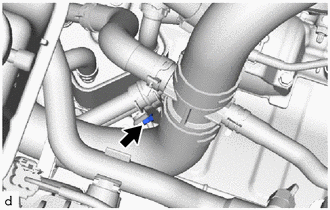

- Disconnect the clamps shown in the illustration.

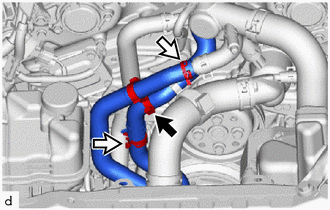

Clamp Clip - Using pliers, grip the claws of the 2 hose clips and slide the hose clip to disconnect the water pipe sub-assembly.NOTE:
- Do not apply excessive force to the water pipe sub-assembly.
- Prepare a drain pan or cloth in case the coolant leaks.
- Remove the nut.
- Disconnect the connector.
Nut Connector - Remove the 2 nuts.

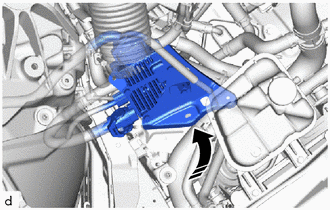

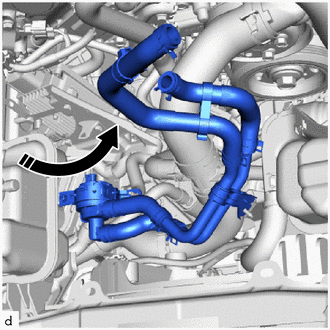

- Move the heater accessory assembly (with water pipe sub-assembly) to the center of the engine room and remove it as shown in the illustration.
Remove in this Direction - Using pliers, grip the claws of the 2 hose clips and slide the hose clip to remove the water pipe sub-assembly.NOTE:
- Do not apply excessive force to the water pipe sub-assembly.
- Prepare a drain pan or cloth in case the coolant leaks.
- Remove the 4 hose clips from the water pipe sub-assembly.
- Disconnect the clamps shown in the illustration.
