Removal [05/2023 - ]: Procedure
- PRECAUTION WARNING:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
Refer to PRECAUTION [05/2023 - ]
NOTE:After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
- REMOVE NO. 2 DECK BOARD
Refer to PROCEDURE - Step 11
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3
- RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
Refer to PROCEDURE - Step 1
- REMOVE FRONT BUMPER ASSEMBLY
Refer to REMOVAL [05/2023 - ]
- REMOVE ENGINE UNDER COVER REINFORCEMENT
Refer to PROCEDURE - Step 5
- DRAIN COOLANT (for Inverter)
Refer to PROCEDURE - Step 2
- REMOVE NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 7
- REMOVE HOOD LOCK RELEASE LEVER PROTECTOR
Refer to PROCEDURE - Step 5
- REMOVE HOOD LOCK CONTROL CABLE COVER RH
- REMOVE HOOD LOCK CONTROL CABLE COVER LH
Refer to PROCEDURE - Step 6
- REMOVE HOOD LOCK ASSEMBLY
Refer to PROCEDURE - Step 7

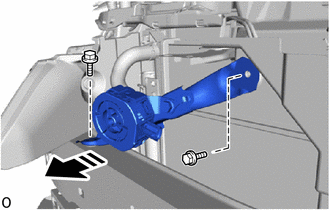

- REMOVE LOW PITCHED HORN ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH
- REMOVE LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH
- REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH
- REMOVE RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
- REMOVE UPPER RADIATOR SUPPORT
- Detach the clamp and disconnect the engine room main wire.
- Remove the 5 bolts.
Bolt Radiator Support Cushion Remove in this Direction - While lifting the upper radiator support upwards, detach the 2 radiator support cushions and remove the upper radiator support.NOTE:
When disconnecting the upper radiator support, do not damage the cooler condenser assembly, radiator assembly (for Inverter coolant) and radiator assembly.
- Detach the clamp and disconnect the engine room main wire.

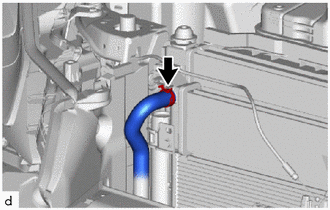

- DISCONNECT NO. 2 INVERTER COOLING HOSE
- DISCONNECT NO. 3 INVERTER COOLING HOSE
- DISCONNECT LIQUID TUBE SUB-ASSEMBLY A
- Remove the 2 bolts and disconnect liquid tube sub-assembly A and No. 1 cooler refrigerant hose bracket from the cooler condenser assembly.NOTE:
Do not apply excessive force to the liquid tube sub-assembly A.
- Remove the O-ring from the liquid tube sub-assembly A.NOTE:
Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
- Remove the 2 bolts and disconnect liquid tube sub-assembly A and No. 1 cooler refrigerant hose bracket from the cooler condenser assembly.
- DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
- Remove the bolt and disconnect the discharge hose sub-assembly from the cooler condenser assembly.NOTE:
Do not apply excessive force to the discharge hose sub-assembly.
- Remove the O-ring from the discharge hose sub-assembly.NOTE:
Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.
- Remove the bolt and disconnect the discharge hose sub-assembly from the cooler condenser assembly.
- REMOVE COOLER CONDENSER ASSEMBLY
- Detach the claw.

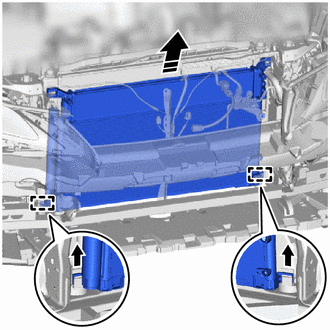

- While lifting the cooler condenser assembly in the direction of the arrow shown in the illustration, detach the guide and remove the cooler condenser assembly and radiator assembly (for inverter coolant).
Remove in this Direction NOTE:- When removing the cooler condenser assembly and radiator assembly (for Inverter Coolant), do not damage the cooler condenser assembly, radiator assembly (for Inverter Coolant) and radiator assembly.
- Prepare a drain pan or cloth in case the coolant leaks.
- Remove the 2 bolts and the radiator assembly (for inverter coolant) from the cooler condenser assembly.
- Detach the claw.
