Removal [05/2023 - ]: Procedure

  1. REMOVE HEADLIGHT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

    Refer to REMOVAL [05/2023 - ]

  2. REMOVE HIGH PITCHED HORN ASSEMBLY
    1. Detach the wire harness clamps.

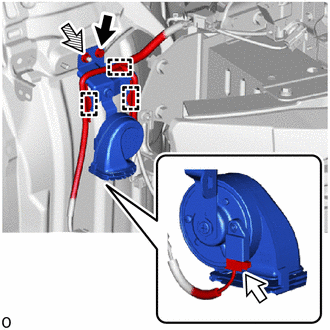

      GTY779614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
      Nut
    2. Remove the bolt, nut and high pitched horn assembly.
    3. Disconnect the connector.
  3. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 5

  4. REMOVE LOW PITCHED HORN ASSEMBLY
    1. Remove the bolt and low pitched horn assembly.

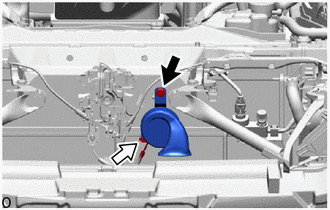

      GTY792379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the connector.
