Installation [01/2017 - 05/2023]: Procedure

  1. ADJUST COMPRESSOR OIL
    1. When replacing the compressor with motor assembly with a new one, drain the following amount of oil from the position shown by the arrow in the illustration before installing the new compressor with motor assembly.

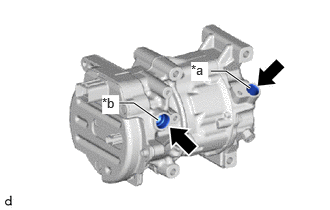

      GTY1242470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Discharge Port
      *b Intake Port

      Standard

      (Oil capacity inside the new compressor with motor assembly: 120 to 135 cc (4.06 to 4.56 fl.oz)) - (Remaining oil amount in the removed compressor with motor assembly) - 65 cc (2.20 fl.oz) = (Oil amount to be removed from the new compressor)

      NOTE:
      • If a new compressor with motor assembly is installed without removing some oil, there will be too much oil in the system due to the oil remaining in the pipes of the vehicle. Excessive oil in the system prevents heat exchange in the refrigeration cycle and causes ineffective cooling.
      • If the amount of oil remaining in the old compressor with motor assembly is too small, check the air conditioning system for oil leaks.
      • Be sure to use ND-OIL 11 or equivalent compressor oil. If any compressor oil other than ND-OIL 11 is used, compressor with motor assembly insulation performance may decrease, resulting in leakage of electric power.
      • Make sure to drain compressor oil from the intake port.
      • Make sure to add compressor oil from the intake port.
      • If the amount of oil from the removed compressor with motor assembly plus an additional 65 cc (2.20 fl.oz) is then greater than the amount of oil in a new compressor with motor assembly, do not drain the compressor oil from the new compressor with motor assembly.
      • When it is not possible to confirm the amount of oil in the system such as when compressor oil is spilt due to damage caused by a vehicle collision, etc., install a new compressor without draining any oil. If also replacing the cooler condenser assembly, do not add the supplied oil (40 cc (1.35 fl.oz)).
  2. INSTALL COMPRESSOR WITH MOTOR ASSEMBLY
    1. Using an E8 "TORX" socket wrench, temporarily install the compressor with motor assembly with the 2 stud bolts.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      HINT:

      Insert bolt (E) into the compressor with motor assembly beforehand.

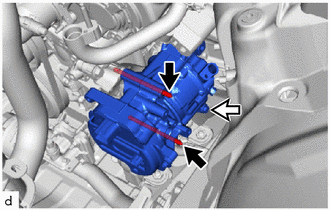

      GTY834457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Stud Bolt
      bolt (E)
    2. Install the compressor with motor assembly with the 2 nuts, bolt (D) and bolt (E).
      Fig 1: Compressor With Motor Assembly Nuts And Bolt Tightening Sequence

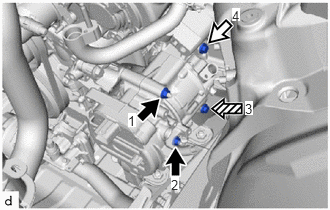

      GTY793914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt (D)
      Bolt (E)
      NOTE:

      Tighten the 2 nuts, bolt (D) and bolt (E) in the order shown in the illustration.

      Nut, Bolt (D), Bolt (E)

      Torque: 24.5 N.m (250 kgf/cm, 18 ft.lbf)

    3. Remove the vinyl tape wrapped around the connector (B).
    4. Connect the connector (B) and slide the green-colored lock as shown in the illustration to lock it securely.
      WARNING:

      Make sure to wear insulating gloves.

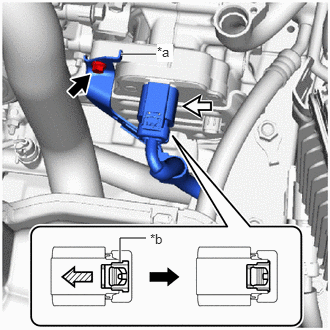

      GTY781488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
      *b Green-colored Lock
      Bolt (C)
      Connector (B)
      NOTE:

      Make sure that the connector is connected securely.

    5. Install the wiring harness clamp bracket (bolt (C) fastening side) with the bolt (C).
      NOTE:

      Install with a stopper on upper area of the compressor with motor assembly.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    6. Install the wiring harness clamp bracket (bolt (B) fastening side) with the bolt (B).

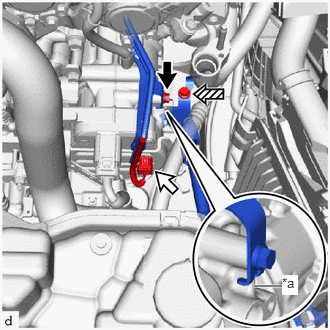

      GTY780273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rib
      Bolt (A)
      Connector (A)
      bolt (B)

      Torque: 17.5 N.m (178 kgf/cm, 13 ft.lbf)

    7. Install the wiring harness clamp bracket (bolt (A) fastening side) with the bolt (A).
      NOTE:

      Install by attaching the rib on the surface of the compressor with motor assembly as shown in the illustration.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    8. Connect the connector (A).
  3. INSTALL SUCTION HOSE SUB-ASSEMBLY A
    1. Remove the vinyl tape from the suction hose sub-assembly A, suction tube sub-assembly B and connecting part of the compressor with motor assembly.
    2. Sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the suction tube sub-assembly B and the fitting surface of the compressor with motor assembly.

      Compressor Oil

      ND-OIL 11 or equivalent

      NOTE:

      Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in leakage of electric power.

    3. Install the 2 O-rings to the suction hose sub-assembly A.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the suction hose sub-assembly A to the compressor with motor assembly with the bolt.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

      GTY838425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
      NOTE:
      • Do not apply excessive force to the suction hose sub-assembly A.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
    5. Connect the suction hose sub-assembly A to the suction tube sub-assembly B with the nut.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

      NOTE:
      • Do not apply excessive force to the suction hose sub-assembly A and suction tube sub-assembly B.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
  4. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the discharge hose sub-assembly and connecting part of the compressor with motor assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor with motor assembly.

      Compressor Oil

      ND-OIL 11 or equivalent

      NOTE:

      Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in leakage of electric power.

    3. Install the O-ring to the discharge hose sub-assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Insert a torque wrench from the rear of the compressor with motor assembly as shown in the illustration and connect the discharge hose sub-assembly to the compressor with motor assembly with the bolt.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

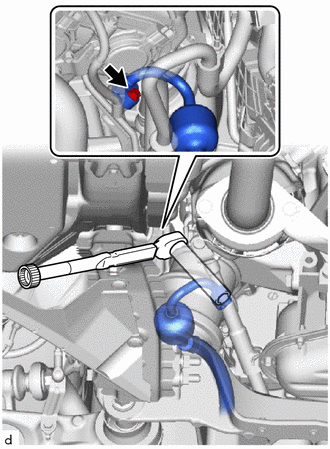

      GTY829553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not apply excessive force to the discharge hose sub-assembly.
      • Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)
  5. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 114 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 114 [06/2019 - 05/2023]

  6. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 115 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 115 [06/2019 - 05/2023]

  7. INSTALL RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY LH
    1. Install the radiator support to crossmember brace sub-assembly LH with the 2 bolts.
      GTY806111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

  8. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [01/2017 - 05/2023]

  9. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [01/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

  10. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - 05/2023]

  11. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 2

  12. WARM UP COMPRESSOR

    Refer to PROCEDURE - Step 3

  13. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 4

  14. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 118 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 118 [06/2019 - 05/2023]

  15. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [01/2017 - 04/2020] , or refer to DTC CHECK / CLEAR [04/2020 - ]

  16. CHECK SRS WARNING LIGHT

    Refer to OPERATION CHECK [01/2017 - 04/2020] , or refer to OPERATION CHECK [04/2020 - ]
