Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SPEAKER MOUNTING COVER
    1. for 12 Speakers:
      1. Install the speaker mouting cover with the 4 bolts.
        GTY809766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.4 N.m (35 kgf/cm, 30 in.lbf)

    2. for 13 Speakers:
      1. Install the speaker mouting cover with the 4 bolts.
        GTY809779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.4 N.m (35 kgf/cm, 30 in.lbf)

  2. INSTALL NO. 3 SPEAKER ASSEMBLY WITH BOX
    1. for 12 Speakers:
      GTY795843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Connector
      1. Connect the connector.
      2. Temporarily set the No. 3 speaker with box assembly on the stand bolt of the partition panel.
      3. Install the No. 3 speaker assembly with box with the 6 nuts.
    2. for 13 Speakers:
      GTY802662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Connector
      1. Connect the connector.
      2. Temporarily set the No. 3 speaker with box assembly on the stand bolt of the partition panel.
      3. Install the No. 3 speaker assembly with box with the 6 nuts.
  3. INSTALL REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  4. INSTALL REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 2

  5. INSTALL REAR SEAT BACK COVER

    Refer to PROCEDURE - Step 3

  6. INSTALL NO. 2 REAR SEAT CUSHION SPRING
    1. Install the No. 2 rear seat cushion spring with the 2 nuts.
      GTY809780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR SEAT SIDE GARNISH
    1. Install the strap with the strap fixing bolt.
      GTY809784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

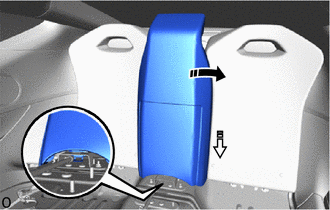

    2. Move the rear seat side garnish in the direction of the arrow shown in the illustration and insert it into the No. 2 rear seat cushion spring.
      GTY791647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)

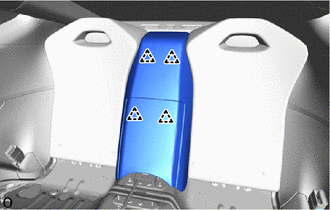

    3. Align and attach the clips and install the rear seat side garnish.
      GTY811649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 6

  9. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 7
