Installation [03/2017 - 05/2023]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NAVIGATION ECU
  2. INSTALL NO. 1 WIRING HARNESS CLAMP BRACKET
    1. Attach the guide to install the No. 1 wiring harness clamp bracket.
      GTY787709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
  3. INSTALL NO. 1 NAVIGATION WIRE

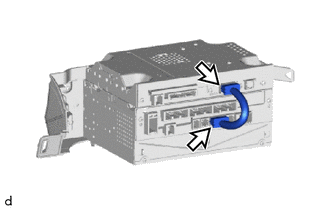

    1. Connect the 2 connectors to install the No. 1 navigation wire and temporarily install the navigation ECU.
      GTY830033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 RADIO BRACKET

    Refer to PROCEDURE - Step 2

  5. INSTALL NO. 2 RADIO BRACKET

    Refer to PROCEDURE - Step 3

  6. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 5

  7. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to INSTALLATION [03/2017 - 05/2023]

  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  9. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13 [03/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - ]
