Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Tie the string that was passed through the engine compartment to the end of the hood lock control cable assembly.

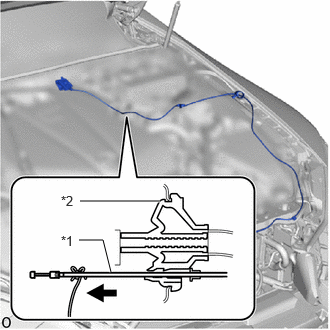

    2. Pass the hood lock control cable assembly through the wire harness grommet as shown in the illustration.
      GTY950798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly
      *2 Wire Harness Grommet
    3. Disconnect the string from the hood lock control cable assembly.
    4. Attach clamps to install the grommet and hood lock control cable assembly.
      GTY950917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly
      *2 Grommet
  2. INSTALL HOOD LOCK ASSEMBLY
    1. Apply MP grease to the sliding areas of the hood lock assembly.
    2. Connect the hood lock control cable assembly and hood control assembly.
    3. Install the hood lock assembly with the 3 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    4. Connect the connector.
  3. INSTALL HOOD LOCK CONTROL CABLE COVER LH
    1. Attach the clamps to install the hood lock control cable cover LH.
  4. INSTALL HOOD LOCK RELEASE LEVER PROTECTOR
    1. Attach the clamp to install the hood lock release lever protector with the 2 clips.
    2. Attach the harness clamp.
  5. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Connect the hood lock control cable assembly to install the hood lock control lever sub-assembly.
    2. Attach the claws to install the hood lock control lever sub-assembly.
  6. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 30 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 30 [04/2020 - 05/2023] , or refer to INSTALLATION [05/2023 - ]

  7. INSTALL FRONT FENDER REINFORCEMENT TOP SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  8. INSTALL FRONT BUMPER COVER

    Refer to INSTALLATION [03/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]

  9. ADJUST HOOD SUB-ASSEMBLY

    Refer to ADJUSTMENT [03/2017 - ]
