Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE MULTI-DISPLAY ASSEMBLY WITH CLOCK

    Refer to REMOVAL [06/2018 - 08/2021]

  2. REMOVE NO. 1 SUB-CLUSTER MODULE PANEL

    Refer to PROCEDURE - Step 19

  3. REMOVE MULTI-MEDIA MODULE COVER

    Refer to PROCEDURE - Step 20

  4. REMOVE CLOCK ASSEMBLY
    1. for 8 Inch Display:
      1. Disengage the 2 claws and remove the clock assembly.

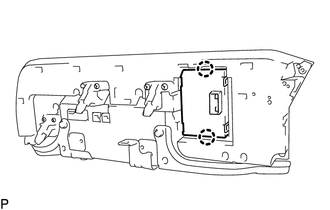

        GTY809900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for 12.3 Inch Display:
      1. Disengage the 2 claws and remove the clock assembly.

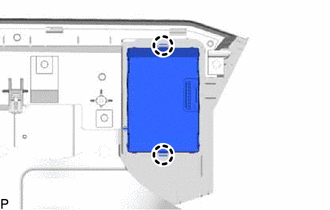

        GTY834891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
