Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 4

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 5

  3. REMOVE FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 6

  4. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 14

  5. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

  7. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 23

  9. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  10. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  11. REMOVE NO. 1 INSTRUMENT CLUSTER MOULDING

    Refer to PROCEDURE - Step 17

  12. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  13. REMOVE NO. 2 INSTRUMENT CLUSTER MOULDING

    Refer to PROCEDURE - Step 30

  14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Headup Display)

    Refer to PROCEDURE - Step 31

  15. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ Headup Display)

    Refer to PROCEDURE - Step 32

  16. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  17. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY

    Refer to PROCEDURE - Step 34

  18. REMOVE MULTI-DISPLAY ASSEMBLY WITH CLOCK

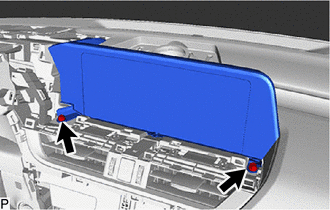

    1. Remove the 2 bolts.
      GTY789297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

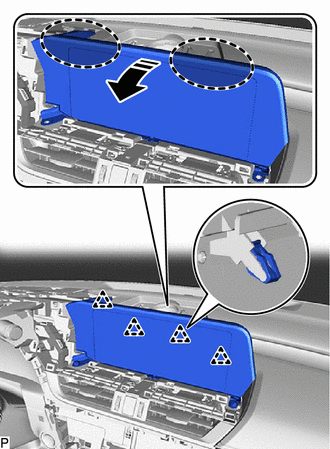

    2. Pull the multi-display assembly with clock as shown in the illustration to disengage the 4 clips.
      GTY831120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

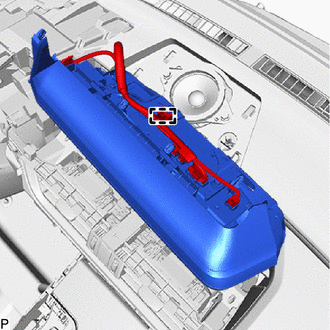

    3. Disengage the clamp.
      GTY789290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector and remove the multi-display assembly with clock.
  19. REMOVE NO. 1 SUB-CLUSTER MODULE PANEL
    1. for 8 Inch Display:

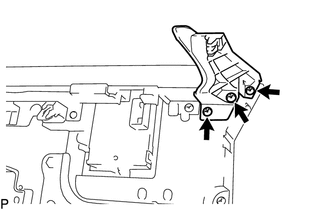

      1. Remove the 3 screws and No. 1 sub-cluster module panel.
        GTY809886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for 12.3 Inch Display:
      1. Remove the 3 screws.
        GTY809901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 2 guides to remove the No. 1 sub-cluster module panel.
        GTY834890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE MULTI-MEDIA MODULE COVER
    1. for 8 Inch Display:

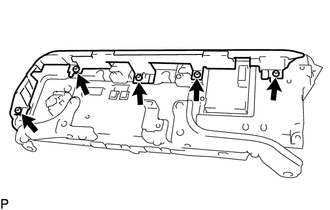

      1. Remove the 5 screws.
        GTY809893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

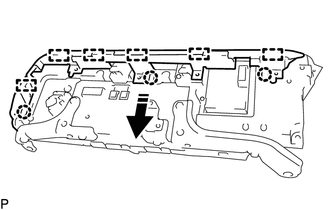

      2. Disengage the 3 claws and 6 guides as shown in the illustration to remove the multi-media module cover.
        GTY829132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
    2. for 12.3 Inch Display:

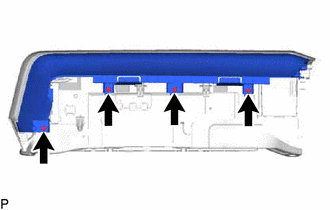

      1. Remove the 4 screws.
        GTY809899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

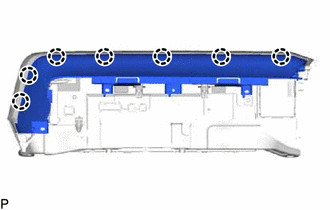

      2. Disengage the 7 claws to remove the multi-media module cover.
        GTY809902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE CLOCK ASSEMBLY

    Refer to PROCEDURE - Step 4

  22. REMOVE MULTI-DISPLAY ASSEMBLY
