Installation [06/2018 - 08/2021]: Procedure

INSTALL FRONT NO. 3 SPEAKER ASSEMBLY (for Center)
NOTE:
Do not touch the speaker cone.
1. Connect the connector.
2. Install the front No. 3 speaker assembly with the 2 bolts.

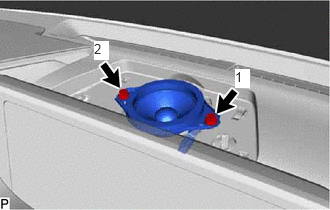

  Fig 1: Front No. 3 Speaker Assembly (For Center) Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Install the bolts in the order shown in the illustration.
INSTALL NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)
Refer to PROCEDURE - Step 21

INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for Side)

NOTE:

Do not touch the speaker cone.

Install the front No. 2 speaker assembly with the 2 bolts.

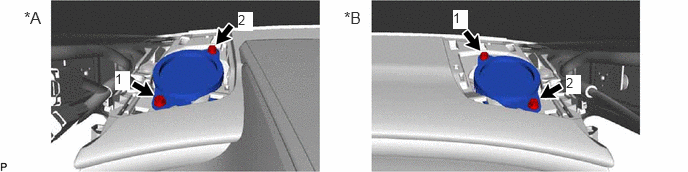

Fig 2: Front No. 2 Speaker Assembly (For Side) Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for LH Side

for RH Side

HINT:

Install the bolts in the order shown in the illustration.

INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)
Refer to PROCEDURE - Step 14
INSTALL FRONT PILLAR GARNISH ASSEMBLY (for Side)
Refer to PROCEDURE - Step 30
INSTALL FRONT DOOR OPENING TRIM COVER (for Side)
Refer to PROCEDURE - Step 31
INSTALL COWL SIDE TRIM BOARD (for Side)
Refer to PROCEDURE - Step 32
INSTALL FRONT DOOR SCUFF PLATE (for Side)
Refer to PROCEDURE - Step 33
