Removal [10/2015 - ]: Procedure

  1. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS

    See step  [10/2015 - ], or see step  [10/2015 - 08/2016], or see step  [12/2017 - 08/2019], or see step  [08/2019 - ]

  2. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 2 [10/2015 - ]

  3. REMOVE TILT AND TELESCOPIC SWITCH

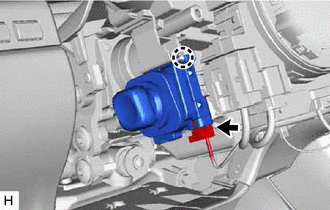

    1. GTY636652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the tilt and telescopic connector from the tilt and telescopic switch.

    2. Disengage the claw and pull out the tilt and telescopic switch.
