Removal [10/2015 - ]: Procedure

CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS
Refer to PROCEDURE - Step 2 [10/2015 - 08/2016] , or refer to PROCEDURE - Step 2 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 2 [08/2019 - ]

REMOVE LOWER STEERING COLUMN COVER

NOTE:

Removing the lower steering column cover in the incorrect order will cause the parts to break.

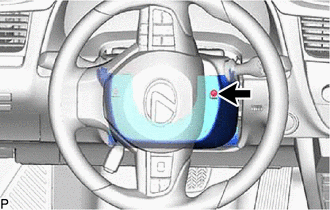

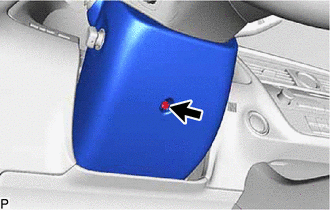

Turn the steering wheel assembly to the left and remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

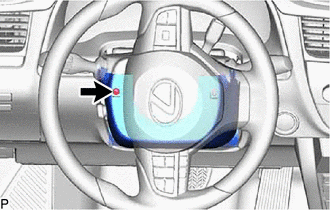

Turn the steering wheel assembly to the right and remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

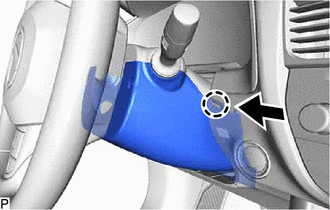

Push the left side of the lower steering column cover and disengage the claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push

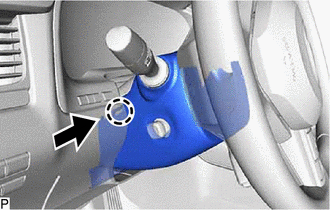

Push the right side of the lower steering column cover and disengage the claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push

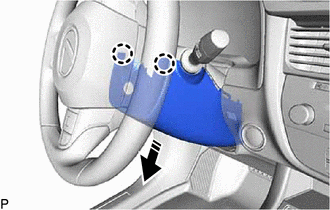

Disengage the 2 claws to remove the lower steering column cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE UPPER STEERING COLUMN COVER

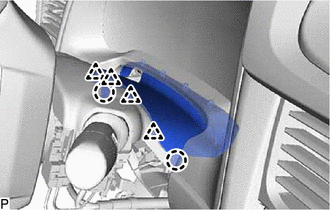

Disengage the 2 claws and 4 clips to separate the instrument cluster finish panel sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

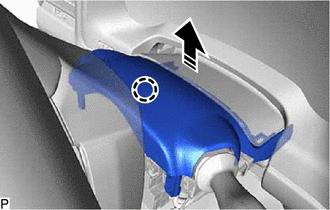

Disengage the claw to remove the upper steering column cover as shown in the illustration.

Remove in this Direction

REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

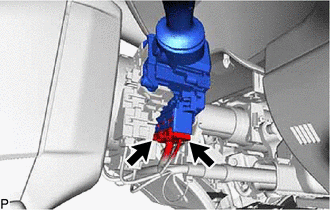

Disconnect the 2 connectors.

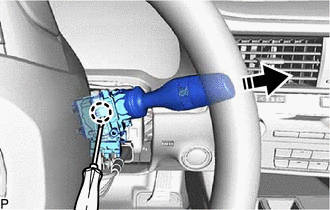

Using a screwdriver, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

Remove in this Direction

NOTE:

If the claw is pulled with excessive force, it may break.
