Removal [09/2015 - 08/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Lexus RX 350, 2021 Lexus RX 350, 2020 Lexus RX 350, 2019 Lexus RX 350, and 2018 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION

    Refer to PRECAUTION [09/2015 - 08/2016] , or refer to PRECAUTION [08/2016 - 08/2019]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 1 [08/2016 - 08/2019]

  3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  4. REMOVE FRONT TELEVISION CAMERA ASSEMBLY
    1. Disconnect the connector.
      GTY663026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

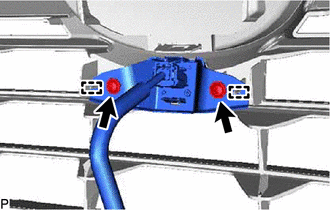

    2. Remove the 2 screws.
      GTY683649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides and remove the front television camera assembly.
  5. REMOVE TELEVISION CAMERA WIRE (for TMC Made)
    1. Disconnect the connector and remove the television camera wire.
      GTY663025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
