Removal [09/2015 - 08/2019]: Procedure

Refer to PROCEDURE - Step 1 [09/2015 - 08/2016] Refer to PROCEDURE - Step 1 [08/2016 - 08/2019]

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

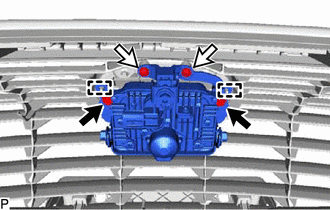

2. Remove the 2 bolts and 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Screw

3. Disengage the 2 guides and remove the millimeter wave radar sensor assembly.
   NOTE:

   Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.
