Removal [11/2021 - ]: Procedure

Refer to PROCEDURE - Step 4

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

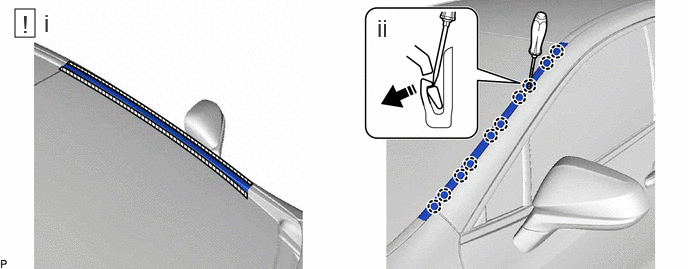

   1. Apply protective tape around the windshield lower outside moulding as shown in the illustration.
   2. Using a screwdriver with its tip wrapped, disengage the 10 claws and remove the windshield lower outside moulding as shown in the illustration.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

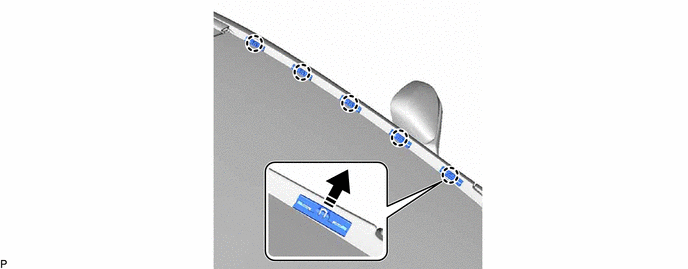

HINT:

Perform the following procedure only when replacement of the No. 3 windshield outside moulding clip is necessary.

Refer to REMOVAL [11/2021 - ]

HINT:

Perform the following procedure only when replacement of the No. 3 windshield outside moulding clip is necessary.

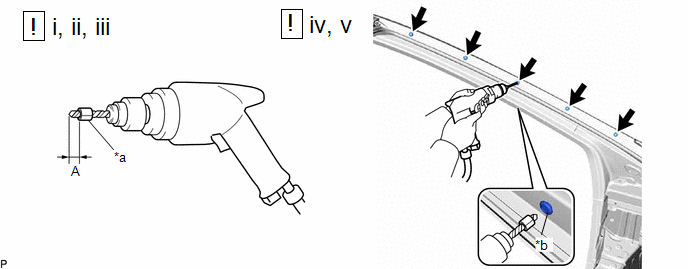

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Tape

   *b

   Flange

   1. Insert a 4.0 mm (0.157 in.) drill bit into a drill.
   2. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

      Standard Measurement

      Area	Measurement	Area	Measurement
      A	5.0 mm (0.197 in.)	-	-

      NOTE:

      Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

   3. Lightly press the drill against the No. 3 windshield outside moulding clips to drill off the rivet flanges, and remove the 5 No. 3 windshield outside moulding clips.
      WARNING:

      Be careful of the drilled rivets, as they may be hot.

      NOTE:

      • Pressing the drill too firmly will cause the rivet to turn and result in the No. 3 windshield outside moulding clip not being drilled through.
      • Prying the rivets with the drill may damage the No. 3 windshield outside moulding clip installation holes or drill bit.
   4. Using a vacuum cleaner, remove the No. 3 windshield outside moulding clip fragments and shavings from the drilled areas.
   5. Remove the 5 No. 3 windshield outside moulding clips.
