Removal [11/2021 - ]: Procedure

REMOVE FRONT WIPER ARM HEAD CAP

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

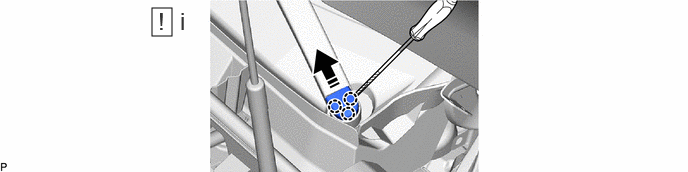

Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to remove the front wiper arm head cap.

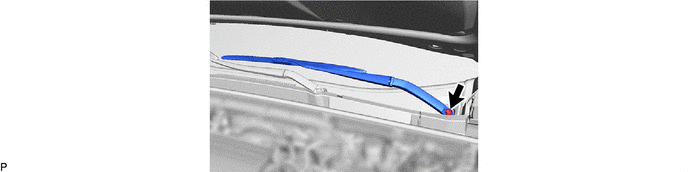

REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

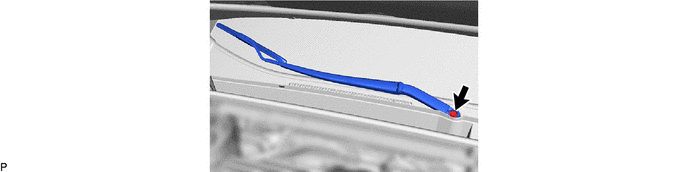

REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT FENDER TO COWL SIDE SEAL LH

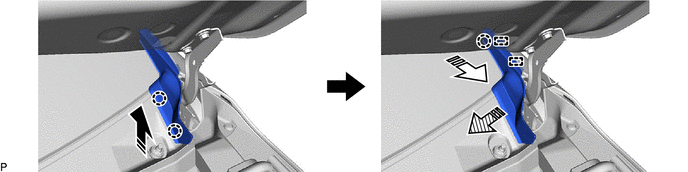

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)		Remove in this Direction (2)
	Remove in this Direction (3)	-	-

REMOVE FRONT FENDER TO COWL SIDE SEAL RH
1. Use the same procedure as for the LH side.

REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

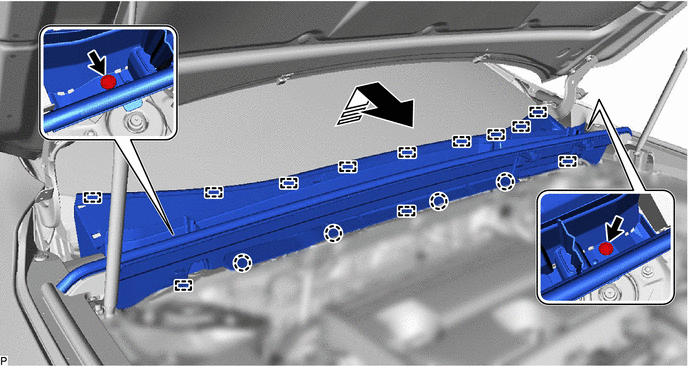

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

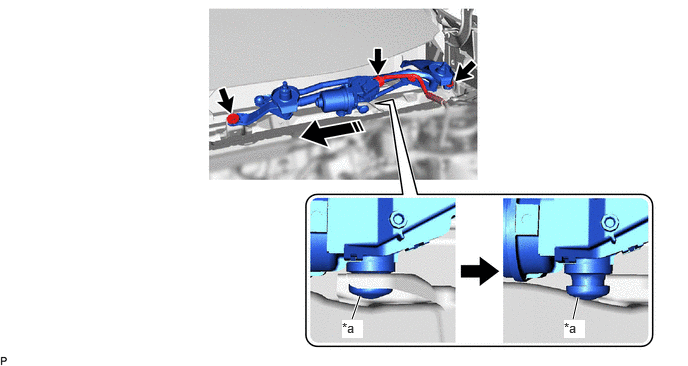

REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

NOTE:

Be careful not to damage the windshield glass when removing the windshield wiper motor and link.

*a	Motor Grommet	-	-
	Remove in this Direction	-	-

REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

*1	No. 1 Windshield Wiper Link Rod	-	-
*a	Pivot of Windshield Wiper Motor Assembly	-	-

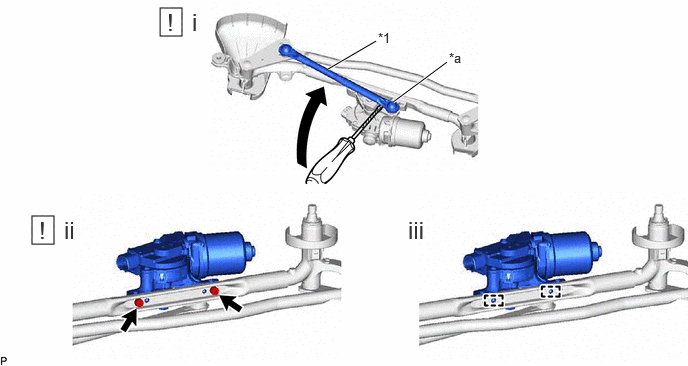

Using a screwdriver with its tip wrapped with protective tape, separate the No. 1 windshield wiper link rod from the pivot of the front wiper motor assembly as shown in the illustration.
Using a T30 "TORX" socket wrench, remove the 2 bolts.
Disengage the 2 guides and remove the windshield wiper motor assembly from the windshield wiper link assembly.
