Disassembly [11/2021 - ]: Procedure

  1. REMOVE CENTER STOP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

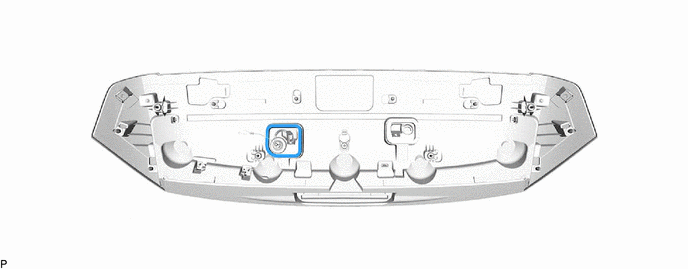

  2. REMOVE PACKING A
    1. GTY1053151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

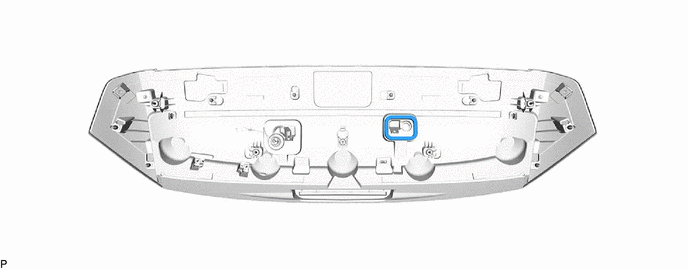

  3. REMOVE PACKING B
    1. GTY1053159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

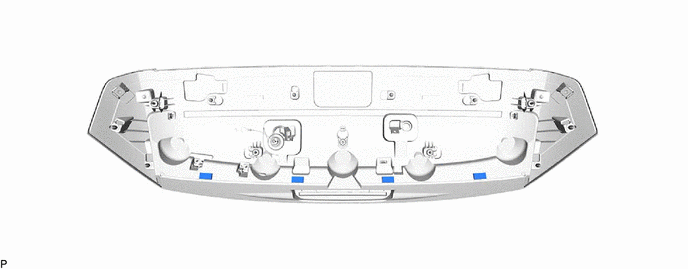

  4. REMOVE NO. 2 REAR SPOILER PROTECTOR
    1. GTY1053158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

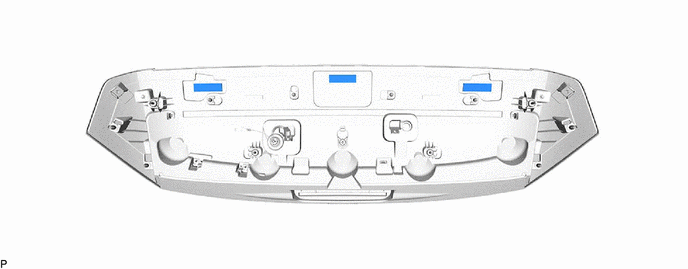

  5. REMOVE NO. 1 REAR SPOILER PROTECTOR
    1. GTY1053900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE PROTECTOR
    1. GTY1055985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
