Removal [11/2021 - ]: Procedure

  1. REMOVE REAR SPOILER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

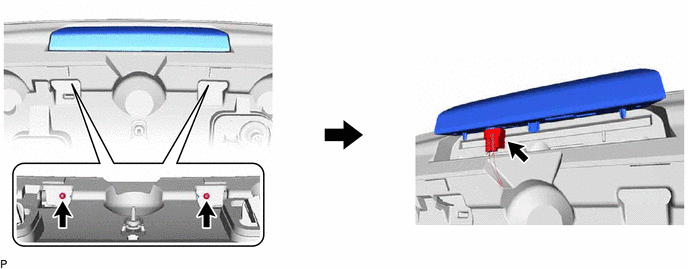

  2. REMOVE CENTER STOP LIGHT ASSEMBLY
    1. GTY1070248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
