Removal [12/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE NO. 2 DOOR INSIDE HANDLE BEZEL LH
    Refer to PROCEDURE - Step 3
  3. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
    Refer to PROCEDURE - Step 4
  4. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  6. REMOVE SUNSHADE HOOK (w/ Sunshade)

    Refer to PROCEDURE - Step 17

  7. REMOVE REAR DOOR FRAME GARNISH LH
    Refer to PROCEDURE - Step 18
  8. REMOVE REAR DOOR GLASS INNER WEATHERSTRIP LH

    Refer to PROCEDURE - Step 19

  9. REMOVE REAR DOOR REAR BELT SEAL LH

    Refer to PROCEDURE - Step 21

  10. REMOVE REAR DOOR SERVICE HOLE COVER LH
    Refer to PROCEDURE - Step 22
  11. REMOVE REAR DOOR GLASS RUN LH

    Refer to PROCEDURE - Step 23

  12. REMOVE NO. 2 REAR DOOR WEATHERSTRIP LH
    Refer to PROCEDURE - Step 24
  13. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 25
  14. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 26
  15. REMOVE REAR DOOR QUARTER WINDOW GLASS LH

    Refer to PROCEDURE - Step 27

  16. REMOVE REAR DOOR BELT MOULDING ASSEMBLY LH

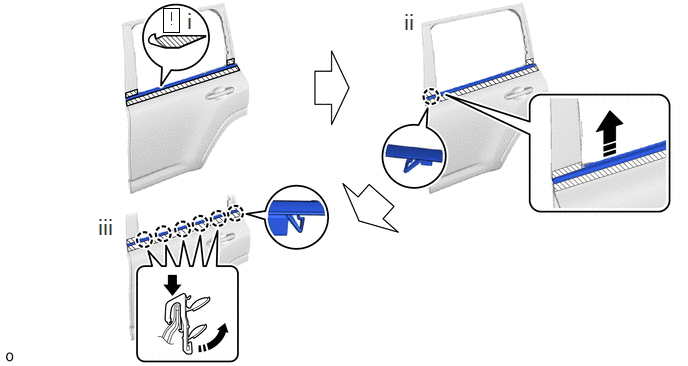

    1. Fig 1: Rear Door Belt Moulding Assembly LH Detachment Sequence
      GTY1056864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction Push in this Direction
      1. Remove the rear door belt moulding assembly LH by the following procedure.

        1. Put protective tape around the rear door belt moulding assembly LH.

        2. Using moulding remover A, detach the claw as shown in the illustration.

        3. Detach the claw and remove the rear door belt moulding assembly LH in the order shown in the illustration.
