Removal [12/2021 - ]: Procedure

Refer to REMOVAL [12/2021 - ]

NOTE: When removing the front door rear window frame moulding LH, if the double-sided tape is difficult to remove, heat the adhesive of the front door rear window frame moulding LH using a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Double-sided Tape	-	-
   	Remove in this Direction	-	-

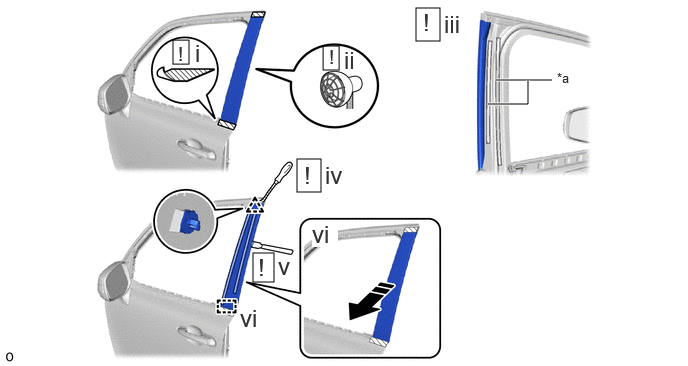

   1. Put protective tape around the front door rear window frame moulding LH.
   2. Heat the adhesive of the front door rear window frame moulding LH using a heat light.
   3. Remove the double-sided tape from the top of the front door rear window frame moulding LH.
   4. Using a clip remover with its tip wrapped with protective tape, detach the clip as shown in the illustration.
   5. Using scraper, detach the double-sided tape as shown in the illustration.
   6. Detach the guide and remove the front door rear window frame moulding LH.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Tape

   *b

   Flange

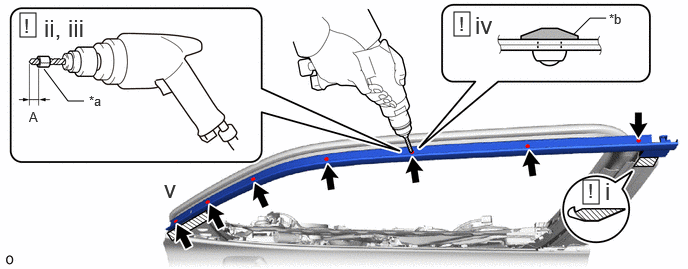

   1. Put protective tape around the front door upper window frame moulding LH.
   2. Insert a 4.0 mm (0.157 in.) drill bit into a drill.
   3. Tape the 4.0 mm (0.157 in.) drill bit 5.0 mm (0.197 in.) from the tip as shown in the illustration.

      Standard Measurement

      Area	Measurement	Area	Measurement
      A	5.0 mm (0.197 in.)	-	-

      NOTE:

      Tape the 4.0 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

   4. Lightly press the drill against the rivets to drill off the rivet flanges, and remove the 7 rivets.
      WARNING:

      Be careful of the drilled rivets, as they may be hot.

      NOTE:

      • Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.
      • Prying the rivets with the drill may damage the rivet installation holes or drill bit.
   5. Remove the front door upper window frame moulding LH.

NOTE: When removing the front door front lower frame upper cover LH, if the double-sided tape is difficult to remove, heat the adhesive of the front door front lower frame upper cover LH using a heat light.

Standard Value

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Double-sided Tape	-	-
   	Place Hand Here		Remove in this Direction

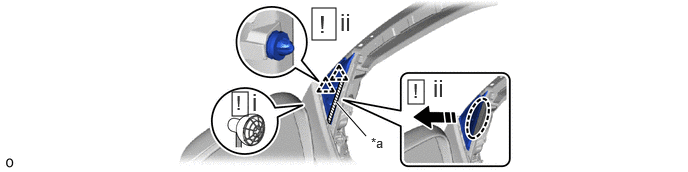

   1. Heat the adhesive of the front door front lower frame upper cover LH using a heat light.
   2. Place your hand at the positions shown in the illustration and detach the clip and double-sided tape and remove the front door front lower frame upper cover LH as shown in the illustration.
