Removal [12/2021 - ]: Procedure

  1. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY

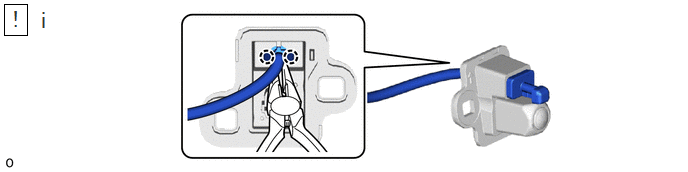

    1. GTY1065938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a pliers with its tip wrapped with protective tape, detach the claw and remove the No. 1 camera cleaner nozzle assembly.
