Installation [10/2017 - 10/2020]: Procedure

  1. INSPECT REAR SEAT OUTER BELT ASSEMBLY

    Refer to INSPECTION [10/2017 - ]

  2. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH
    1. Attach the guide and temporarily install the rear seat outer belt assembly LH.

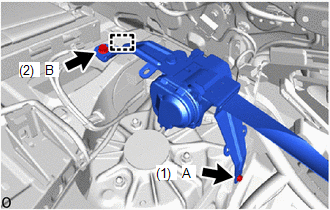

      Fig 1: Rear Seat Outer Belt Assembly LH Bolts Tightening Sequence
      GTY787394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 bolts in the order shown in the illustration.

      Bolt A

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

      Bolt B

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

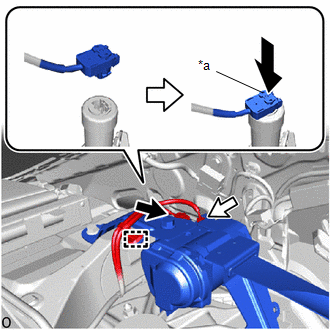

    3. Connect the pretensioner connector and lock the locking button as shown in the illustration.
      GTY815313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      Pretensioner Connector
      Tension Reducer Connector
      NOTE:
      • When handling the pretensioner connector, take care not to damage the pretensioner wire harness.
      • Securely lock the locking button.
    4. Connect the tension reducer connector.
    5. Attach the clamp.
  3. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH
    1. Attach the guide and temporarily install the rear seat outer belt assembly RH.

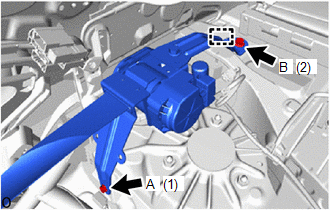

      Fig 2: Rear Seat Outer Belt Assembly RH Bolts Tightening Sequence
      GTY803745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 bolts in the order shown in the illustration.

      Bolt A

      Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

      Bolt B

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

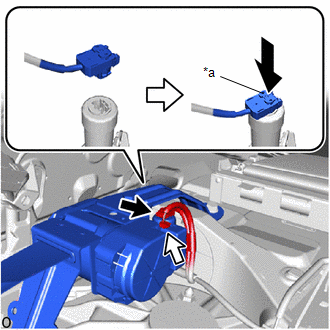

    3. Connect the pretensioner connector and lock the locking button as shown in the illustration.
      GTY812476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      Pretensioner Connector
      Tension Reducer Connector
      NOTE:
      • When handling the pretensioner connector, take care not to damage the pretensioner wire harness.
      • Securely lock the locking button.
    4. Connect the tension reducer connector.
  4. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Attach the guide in the installation direction shown in the illustration.
      GTY831632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    2. Pass the rear seat outer belt assembly LH, rear seat outer belt assembly RH and rear center seat outer belt assembly through the hole of the package tray trim panel assembly.
    3. Push in the installation direction to attach the clip.
      GTY823293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    4. Install the package tray trim panel assembly with the 2 clips.
  5. INSTALL CENTER NO. 1 SPEAKER GRILLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  6. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 20

  7. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  8. INSTALL PACKAGE TRAY TRIM SIDE COVER LH

    Refer to PROCEDURE - Step 22

  9. INSTALL PACKAGE TRAY TRIM SIDE COVER RH

    HINT:

    Use the same procedure described for the LH side.

  10. INSTALL PACKAGE TRAY TRIM GARNISH LH

    Refer to PROCEDURE - Step 24

  11. INSTALL PACKAGE TRAY TRIM GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  12. INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 26

  13. INSTALL ROOF SIDE RAIL GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  14. INSTALL CENTER ROOM PARTITION GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 3

  15. INSTALL NO. 2 EV BATTERY INTAKE DUCT

    Refer to PROCEDURE - Step 17

  16. INSTALL ROOM PARTITION BOARD ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  17. INSTALL ROOM PARTITION BOARD ASSEMBLY RH

    Refer to PROCEDURE - Step 6

  18. INSTALL REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 30

  19. INSTALL REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  20. INSTALL REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 38

  21. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  22. INSTALL REAR CENTER SEAT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 13

  23. INSTALL REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 14

  24. INSTALL REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 15

  25. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

    Refer to PROCEDURE - Step 24

  26. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

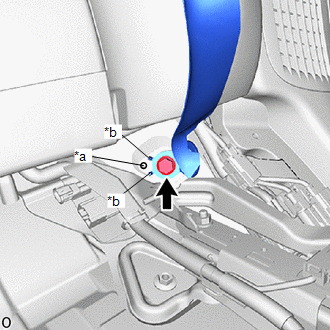

    1. Install the floor anchor of the rear seat outer belt assembly LH with the bolt.
      GTY801145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Body Protrusion
      *b Location Pin

      Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

      NOTE:

      When installing, make sure that the body protrusion comes between the location pins of the floor anchor of the rear seat outer belt assembly LH.

    2. Check that the ELR locks.
      1. With the rear seat outer belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.
  27. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

    HINT:

    Use the same procedure described for the LH side.

  28. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 16

  29. INSTALL REAR CENTER SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 17

  30. INSTALL REAR SEAT CUSHION ASSEMBLY LH

    Refer to PROCEDURE - Step 18

  31. INSTALL REAR SEAT CUSHION ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  32. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  33. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  34. INSPECT SRS WARNING LIGHT

    Refer to OPERATION CHECK [10/2017 - 10/2020]

  35. INSPECT SEAT BELT WARNING SYSTEM

    Refer to ON-VEHICLE INSPECTION [10/2017 - 10/2020]

  36. INSPECT REAR SEAT ASSEMBLY

    Refer to OPERATION CHECK [10/2017 - 09/2018] , or refer to OPERATION CHECK [09/2018 - 09/2019] , or refer to OPERATION CHECK [09/2019 - ]

  37. INSPECT SEAT HEATER SYSTEM

    Refer to OPERATION CHECK [10/2017 - 10/2022]

  38. INSPECT CLIMATE CONTROL SEAT SYSTEM

    Refer to ON-VEHICLE INSPECTION [10/2017 - 10/2022]

  39. INSPECT SEAT VIBRATION SYSTEM (w/ Refresh Seat)

    Refer to OPERATION CHECK [10/2017 - 10/2020]
