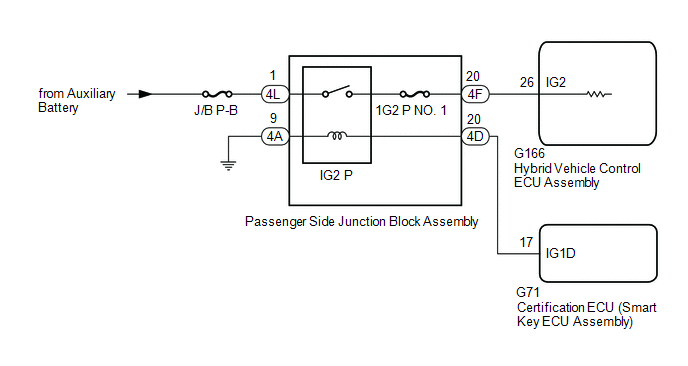

DTC P2530-12: IG2 Signal Circuit Short to Auxiliary Battery [11/2021 - 10/2023]: Wiring Diagram

GTY1086463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to the wiring diagram for ECU Power Source Circuit.

Refer to WIRING DIAGRAM
