Home >> Lexus >> 2022 >> LS 500h RWD >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Testing and Diagnosis >> Hybrid Control System (W/ Advanced Park) - Circuit Tests (2 Of 2) >> HYBRID CONTROL SYSTEM (w/ Advanced Park) >> ECU Power Source Circuit [11/2021 - 10/2023] >> Wiring Diagram

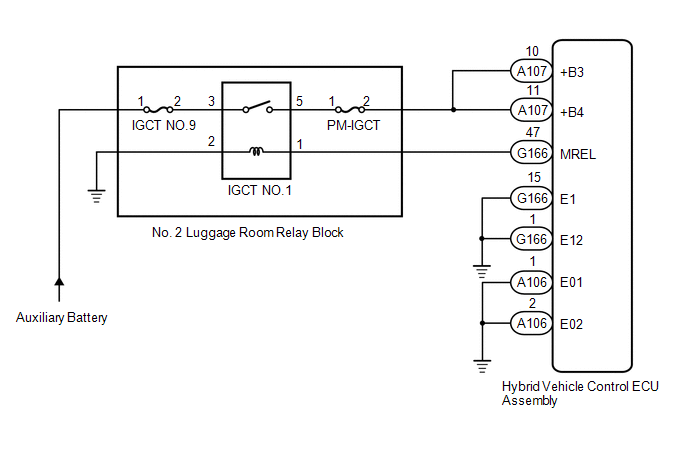

ECU Power Source Circuit [11/2021 - 10/2023]: Wiring Diagram

GTY1086941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
