Reassembly [04/2013 - 10/2016]: Procedure
- INSTALL FRONT BUMPER SIDE RETAINER LH
- INSTALL FRONT BUMPER SIDE RETAINER RH
HINT:
Use the same procedure as for the LH side.
- INSTALL FRONT BUMPER REINFORCEMENT
- INSTALL FRONT BUMPER ENERGY ABSORBER
- INSTALL INSIDE RADIATOR GRILLE
- INSTALL RADIATOR GRILLE MOULDING
- INSTALL FRONT BUMPER EXTENSION SUB-ASSEMBLY
- INSTALL LOWER NO. 2 RADIATOR GRILLE
- INSTALL SYMBOL EMBLEM (w/o Dynamic Radar Cruise Control System)
- INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM (w/ Dynamic Radar Cruise Control System)
HINT:
Use the same procedure as for the symbol emblem.
- INSTALL RADIATOR GRILLE BRACKET
- INSTALL RADIATOR GRILLE PROTECTOR
- INSTALL FRONT BUMPER BRACKET LH
- INSTALL FRONT BUMPER BRACKET RH
HINT:
Use the same procedure as for the LH side.
- INSTALL NO. 1 FRONT BUMPER BRACKET LH
- INSTALL NO. 1 FRONT BUMPER BRACKET RH
HINT:
Use the same procedure as for the LH side.
- INSTALL NO. 2 FRONT BUMPER RETAINER BRACKET
- INSTALL NO. 1 FRONT BUMPER RETAINER BRACKET
HINT:
Use the same procedure as for the No. 2 front bumper retainer bracket.
- INSTALL CLEARANCE LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 1
- INSTALL CLEARANCE LIGHT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- INSTALL LOWER FRONT BUMPER COVER
- INSTALL FRONT FENDER LINER RETAINER
- INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
- INSTALL FOG LIGHT COVER LH
- Engage the 6 claws to install the fog light cover LH.
- INSTALL FOG LIGHT COVER RH
HINT:
Use the same procedure as for the LH side.
- INSTALL FOG LIGHT MOUNTING BRACKET LH
- INSTALL FOG LIGHT MOUNTING BRACKET RH
HINT:
Use the same procedure as for the LH side.
- INSTALL FOG LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 1
- INSTALL FOG LIGHT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- INSTALL AIR INTAKE DUCT LH
- Engage the guide and 2 claws.
- Install the clip.
- Install the 2 screws.

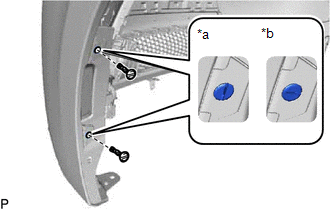

- Install the intake duct LH with the 2 pin hold clips as shown in the illustration.NOTE:
Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is aligned vertically.
*a Correct *b Incorrect
- Engage the guide and 2 claws.
- INSTALL AIR INTAKE DUCT RH
HINT:
Use the same procedure as for the LH side.
- INSTALL CONNECTOR COVER (w/o Intuitive Parking Assist System)
- INSTALL NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)
- Engage the 10 clamps to install the No. 4 engine room wire.
- Remove the release paper from a new hose clamp.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.

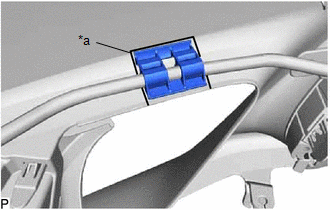

- Align the marking on the front bumper with the hose clamp and install the clamp as shown in the illustration.
*a Marking HINT:
Use the same procedure for the RH side and LH side.
- Engage the 10 clamps to install the No. 4 engine room wire.
- INSTALL LOWER SIDE RADIATOR GRILLE LH
- INSTALL LOWER SIDE RADIATOR GRILLE RH
HINT:
Use the same procedure as for the LH side.
- INSTALL RADIATOR GRILLE CENTER MOULDING LH (w/o Intuitive Parking Assist System)
- INSTALL RADIATOR GRILLE CENTER MOULDING RH (w/o Intuitive Parking Assist System)
HINT:
Use the same procedure as for the LH side.
- INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 3
- INSTALL NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 4
- INSTALL NO. 2 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 1
- INSTALL NO. 2 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 2
- INSTALL HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)

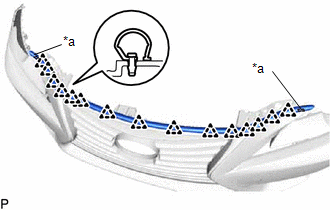

- Engage the 7 clamps to install the headlight cleaner hose.
- Remove the release paper from a new hose clamp.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.

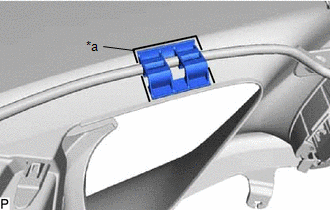

- Align the marking on the front bumper with the hose clamp and install the clamp as shown in the illustration.
*a Marking HINT:
Use the same procedure for the RH side and LH side.
- Engage the 7 clamps to install the headlight cleaner hose.
- INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)
Refer to PROCEDURE - Step 3
- INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)
HINT:
Use the same procedure as for the LH side.
