Installation [04/2013 - 10/2016]: Procedure

INSTALL HEADLIGHT CLEANER WASHER NOZZLE COVER LH

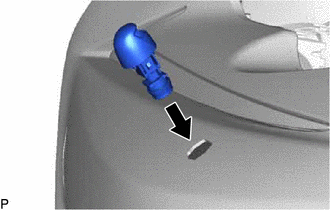

1. Engage the 2 claws to install the headlight cleaner washer nozzle cover LH.
INSTALL HEADLIGHT CLEANER WASHER NOZZLE COVER RH
HINT:

Use the same procedure as for the LH side.

INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH

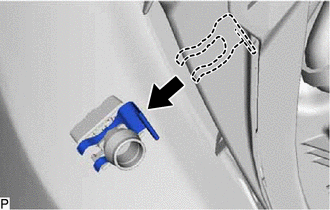

Install the headlight washer actuator sub-assembly LH as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

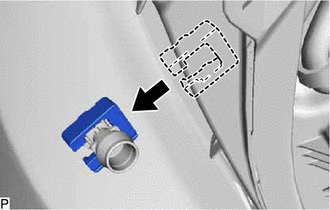

Install the No. 2 headlight cleaner clamp as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the No. 3 headlight cleaner clamp as shown in the illustration.

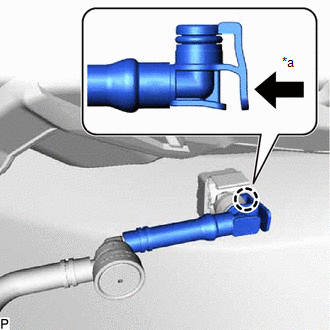

Engage the claw to connect the headlight cleaner hose as shown in the illustration.

Push

INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.
INSTALL FRONT BUMPER ASSEMBLY (for Standard)
Refer to INSTALLATION [04/2013 - 10/2016]
INSTALL FRONT BUMPER ASSEMBLY (for Sport Package)
Refer to INSTALLATION [04/2013 - 10/2016]
