Removal [09/2014 - 11/2017]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - 11/2017]

  2. REMOVE TELEPHONE MICROPHONE ASSEMBLY

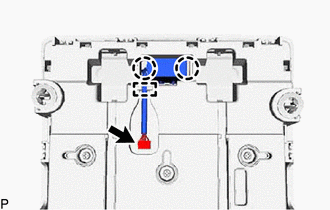

    1. Disconnect the connector.
      GTY501117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Disengage the 2 claws and remove the telephone microphone assembly.
