Removal [09/2014 - ]: Procedure
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 9 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 9 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - 01/2023] , or refer to PROCEDURE - Step 9 [01/2023 - ]
- DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 10 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 10 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 10 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 10 [09/2020 - 01/2023] , or refer to PROCEDURE - Step 10 [01/2023 - ]
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 11 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 11 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 11 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 11 [09/2020 - 01/2023] , or refer to PROCEDURE - Step 11 [01/2023 - ]

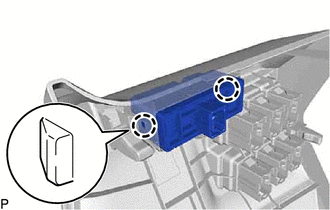

- REMOVE TRIP SWITCH
