Removal [09/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

  2. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - ] ).

  4. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY

    Refer to PROCEDURE - Step 34

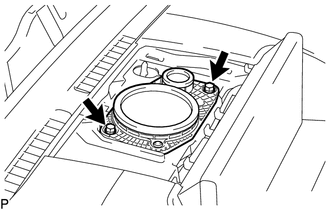

  5. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY
    1. Remove the 2 bolts.
    2. Remove the speaker and disconnect the connector.
      NOTE:

      Do not touch the cone part of the speaker.

      GTY643205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ASSIST GRIP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 38

  7. REMOVE FRONT PILLAR GARNISH LH

    Refer to PROCEDURE - Step 39

  8. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41

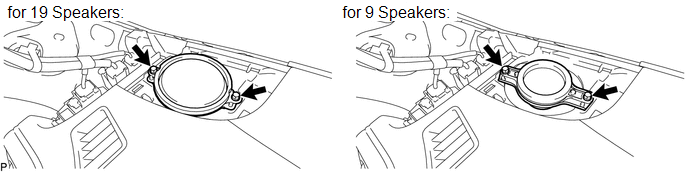

  9. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    1. Remove the 2 bolts.
    2. Remove the speaker and disconnect the connector.
      NOTE:

      Do not touch the cone part of the speaker.

      GTY683550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
