Removal [09/2015 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 4

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 6

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 7

  4. REMOVE BACK DOOR SERVICE HOLE COVER RH

    Refer to PROCEDURE - Step 9

  5. REMOVE BACK DOOR GARNISH

    Refer to PROCEDURE - Step 13

  6. REMOVE REAR HEADER SPEAKER ASSEMBLY (for 19 Speakers)

    Refer to PROCEDURE - Step 8

  7. REMOVE BACK DOOR LOWER STOPPER CUSHION

    Refer to PROCEDURE - Step 3

  8. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  9. REMOVE REAR LIGHT ASSEMBLY LH
    NOTE:

    If the rear light assembly LH has removed, replace the rear light gasket LH with a new one.

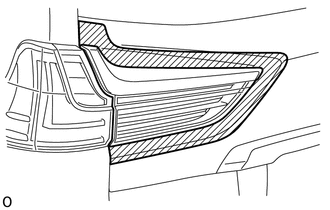

    1. Put protective tape around the rear light assembly LH.
      GTY615321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Protective Tape

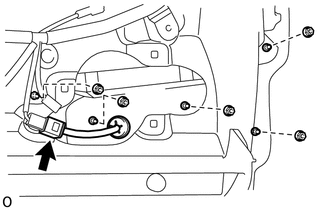

    2. Disconnect the connector.
      GTY615316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 5 nuts.

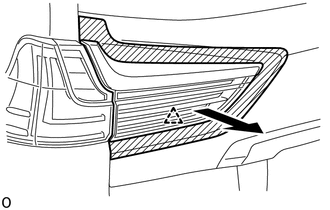

    4. Pull the rear light assembly LH toward the rear of the vehicle to detach the pin to remove it.
      GTY672699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
