Removal [09/2015 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 4

  2. REMOVE CENTER STOP LIGHT ASSEMBLY

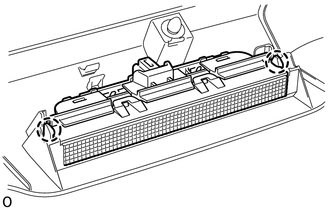

    1. Detach the 2 claws and remove the center stop light assembly.
      GTY615299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
