Removal [10/2017 - 09/2018]: Procedure

WARNING: This page is about a different car, the 2020 Lexus LS 500h, 2019 Lexus LS 500h, and 2018 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [10/2017 - 09/2019]
REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 3

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2017 - 09/2018]
REMOVE TOOL BOX
Refer to PROCEDURE - Step 2
REMOVE LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 23
REMOVE LOWER INNER LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 28
REMOVE BATTERY CARRIER CATCH BRACKET SUB-ASSEMBLY
Refer to PROCEDURE - Step 19

REMOVE REAR STEERING CONTROL ECU

Disconnect the 3 connectors from the rear steering control ECU.

HINT:

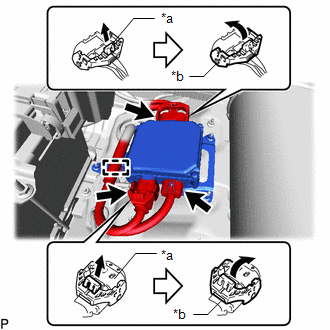

When disconnecting the connector with lock lever, pull out the lock of the lock lever and turn the lock lever as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lock of the Lock Lever
*b	Lock Lever

Disengage the clamp.

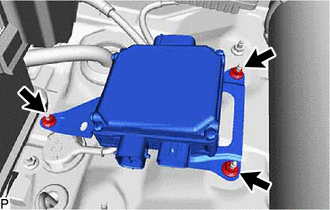

Remove the 3 nuts and rear steering control ECU.
