Installation [10/2017 - 10/2020]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY

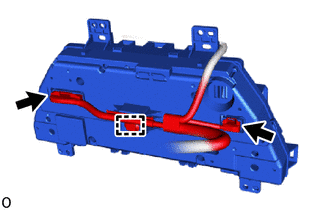

    1. GTY816319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the 2 connectors and attach the wire harness clamp.

    2. except Sport Package:

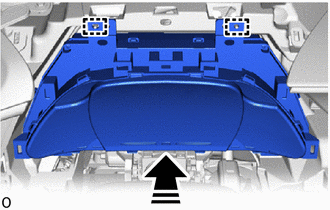

      1. GTY775943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction

        Insert the pin and set the combination meter assembly in the direction of the arrow shown in the illustration.

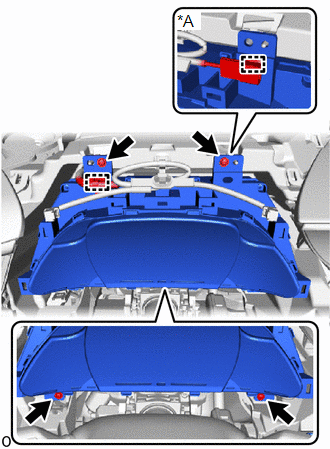

      2. GTY786188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Illumination

        Install the combination meter assembly with the 4 screws.

      3. w/ Illumination:

        Attach the clamp.

      4. Attach the clamp.
    3. for Sport Package:

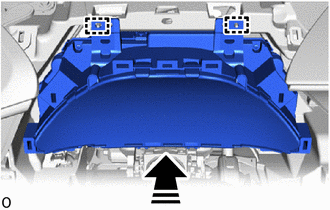

      1. GTY782936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction

        Insert the pin and set the combination meter assembly in the direction of the arrow shown in the illustration.

      2. GTY836321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Install the combination meter assembly with the 4 screws.

      3. Attach the clamp.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Connect the connector.

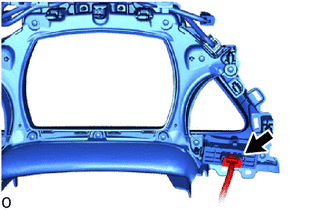

      GTY816324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY790538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A except Sport Package, w/ Illumination:
      Install in this Direction

      Insert the guide and attach the clip to install the instrument cluster finish panel assembly in the direction of the arrow shown in the illustration.

    3. except Sport Package, w/ Illumination:
      1. Connect the connector.

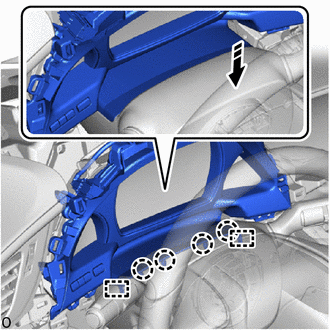

    4. GTY831816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      Push the direction of the arrow in the illustration to insert the guide and attach the guide.

  3. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 21

  4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 23

  5. INSTALL INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  6. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD

    Refer to PROCEDURE - Step 27

  7. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  8. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30

  9. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 9

  10. INSTALL INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 8

  11. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
    1. Reset the auto tilt away function setting to the previous condition by changing the customize parameter.

      Refer to CUSTOMIZE PARAMETERS [10/2017 - ]
