  1. INSTALL RADIO RECEIVER ASSEMBLY
  2. INSTALL NO. 2 RADIO RECEIVER BRACKET
    1. Install the No. 2 radio receiver bracket with the 2 screws.
      GTY791323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.0 N.m (20 kgf/cm, 18 in.lbf)

  3. INSTALL NO. 1 RADIO RECEIVER BRACKET
    1. Install the No. 1 radio receiver bracket with the 2 screws.
      GTY791324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.0 N.m (20 kgf/cm, 18 in.lbf)

  4. INSTALL BRAKE HOLD SWITCH
    1. Attach the claw to install the brake hold switch.
      GTY835722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET
    1. Connect each connector.
    2. Attach the clip to temporarily install the radio receiver assembly with bracket as shown in the illustration.
      GTY818748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the radio receiver assembly with bracket with the 2 bolts.

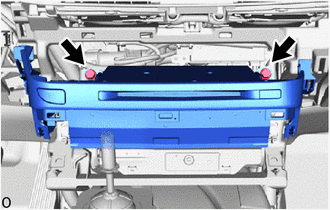

      GTY817745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 2 bolts.

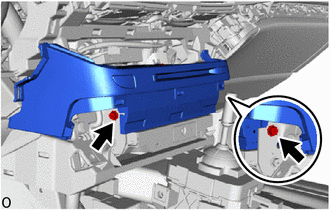

      GTY817746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.0 N.m (20 kgf/cm, 18 in.lbf)

  6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 23 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 25 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 25 [11/2021 - 10/2022]

  7. INSTALL LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 30 [10/2017 - 10/2020] , or refer to PROCEDURE - Step 33 [10/2020 - 11/2021] , or refer to PROCEDURE - Step 33 [11/2021 - 10/2022]

  8. INSTALL INSTRUMENT SIDE PANEL RH
    1. Attach the clip and install the instrument side panel RH in the direction indicated by the arrow shown in the illustration.
      GTY837095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  9. INSTALL INSTRUMENT SIDE PANEL LH
    1. Attach the clip and install the instrument side panel LH in the direction indicated by the arrow shown in the illustration.

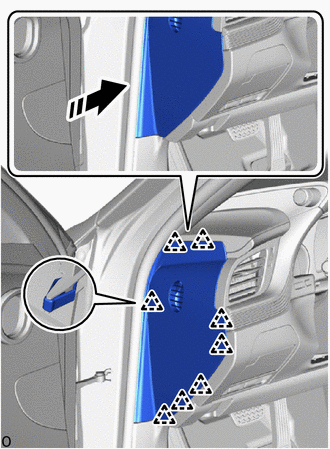

      GTY826943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  10. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [10/2017 - 10/2020] , or refer to INSTALLATION [10/2020 - 10/2022]
