Removal [10/2022 - 10/2023]: Procedure

  1. PRECAUTION
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2021 - 10/2023]

    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to PRECAUTION [10/2020 - 10/2023]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal.

      Refer to PROCEDURE - Step 4

      WARNING:
      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
      • If the airbag deploys for any reason, it may cause a serious accident.
  4. REMOVE REAR SEAT CUSHION ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  5. REMOVE REAR SEAT CUSHION ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE REAR CENTER SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

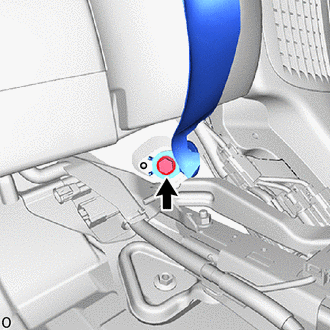

    1. Remove the bolt and floor anchor of the rear seat outer belt assembly LH.
      GTY831939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

    HINT:

    Use the same procedure described for the LH side.

  10. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (FLOOR ANCHOR)

    Refer to PROCEDURE - Step 31

  11. REMOVE REAR SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  12. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 9

  13. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 10

  14. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 15

  15. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  16. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 23

  17. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  18. REMOVE ROOM PARTITION BOARD ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  19. REMOVE ROOM PARTITION BOARD ASSEMBLY RH

    Refer to PROCEDURE - Step 18

  20. REMOVE CENTER ROOM PARTITION GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 19

  21. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 27

  22. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  23. REMOVE PACKAGE TRAY TRIM GARNISH LH

    Refer to PROCEDURE - Step 29

  24. REMOVE PACKAGE TRAY TRIM GARNISH RH

    HINT:

    Use the same procedure described for the LH side.

  25. REMOVE PACKAGE TRAY TRIM SIDE COVER LH

    Refer to PROCEDURE - Step 31

  26. REMOVE PACKAGE TRAY TRIM SIDE COVER RH

    HINT:

    Use the same procedure described for the LH side.

  27. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 33

  28. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  29. REMOVE CENTER NO. 1 SPEAKER GRILLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  30. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Using a clip remover, remove the 2 clips.
      GTY804126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    2. Place your hands at the positions shown in the illustration and pull in the removal direction to detach the clip.
    3. Pass the rear seat outer belt assembly LH, rear seat outer belt assembly RH and rear center seat outer belt assembly through the hole of the package tray trim panel assembly.
      GTY787867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    4. pull in the removal direction to detach the guide and remove the package tray trim panel assembly.
  31. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

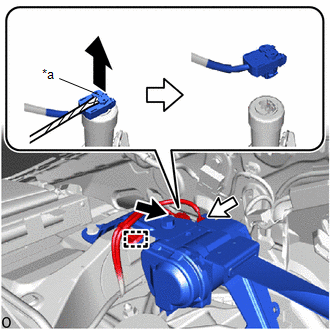

    1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
      GTY821418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      Protective Tape
      Pretensioner Connector
      Tension Reducer Connector

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the tension reducer connector.
    3. Detach the clamp.

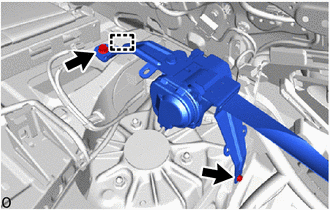

    4. Remove the 2 bolts.
      GTY792141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Detach the guide and remove the rear seat outer belt assembly LH.
  32. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH

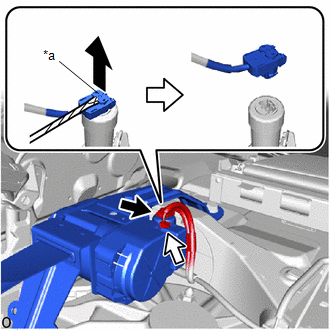

    1. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
      GTY792496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Locking Button
      Protective Tape
      Pretensioner Connector
      Tension Reducer Connector

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the tension reducer connector.

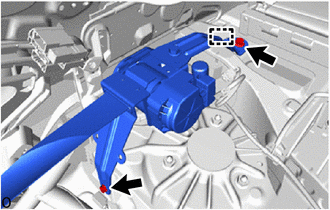

    3. Remove the 2 bolts.
      GTY792137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the guide and remove the rear seat outer belt assembly RH.
