Removal [10/2023 - ]: Procedure

  1. PRECAUTION (w/ Hands Free Power Trunk Lid)
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to PRECAUTION [10/2023 - ]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Hands Free Power Trunk Lid)

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Hands Free Power Trunk Lid)

    Refer to PROCEDURE - Step 4

    WARNING:
    • After disconnecting the cable from the negative (-) battery terminal, wait for at least 60 seconds to start the operation.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR COMBINATION LIGHT COVER LH

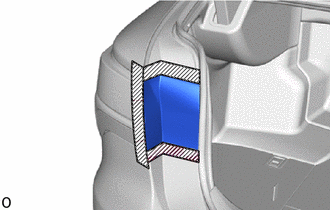

    1. Put protective tape around the rear combination light cover LH.
      GTY786593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

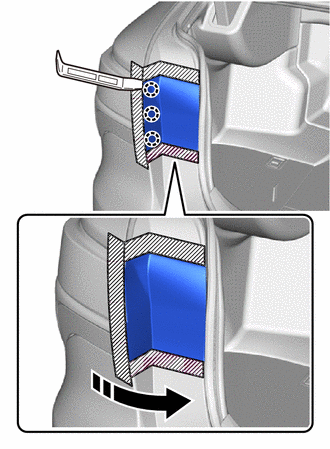

    2. Insert moulding remover A at the position shown in the illustration and detach the claw.
      GTY817104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

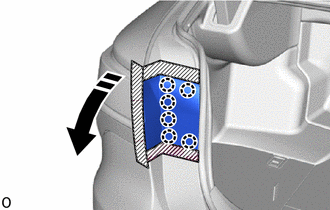

    3. Detach the claw and remove the rear combination light cover LH.
      GTY777640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE REAR COMBINATION LIGHT COVER RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE REAR BUMPER ASSEMBLY

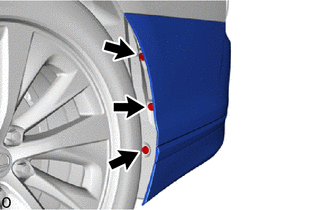

    1. Remove the 3 clips.
      GTY827062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

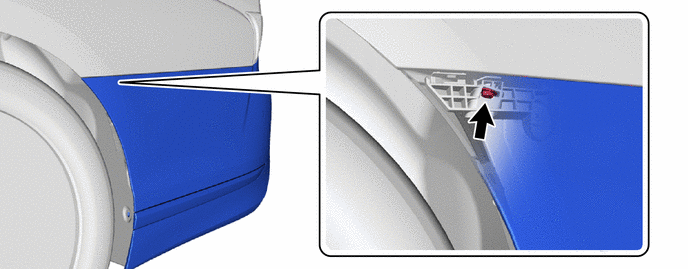

    2. Remove the screw.
      GTY966848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the other side.

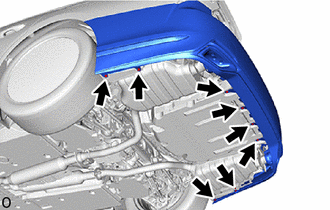

    3. Remove the 8 clips.
      GTY797144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

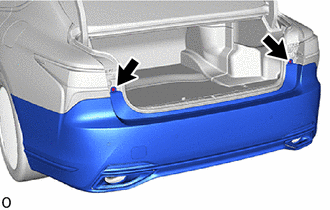

    4. Remove the 2 screws.
      GTY797141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

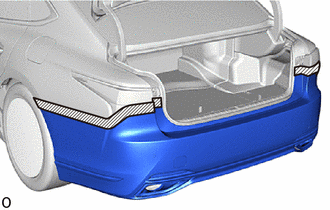

    5. Put protective tape around the rear bumper assembly.
      GTY832054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

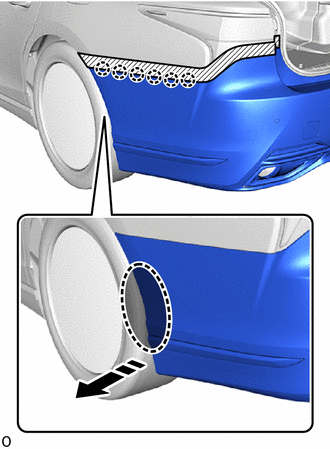

    6. Detach the claw as shown in the illustration.
      GTY804550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

      HINT:

      Use the same procedure for the other side.

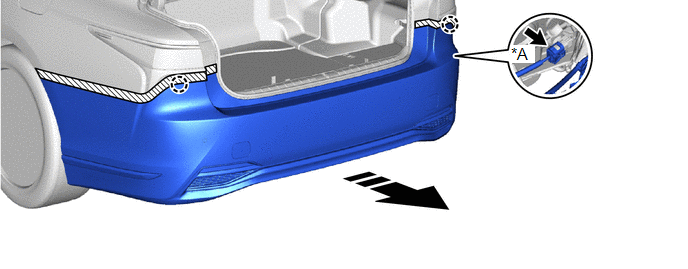

    7. Detach the claw and remove the rear bumper assembly as shown in the illustration.
      GTY966696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Parking Support Brake System - -
      Remove in this Direction - -
    8. w/ Parking Support Brake System:
      1. Disconnect the connector.
