Removal [10/2023 - ]: Procedure

PRECAUTION
NOTE:
- After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
  Refer to BEFORE DISCONNECTING BATTERY [10/2023 - ]
- When replacing the battery, use a new battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.
- After replacing the battery, install the ventilation hole plug supplied with the new battery or the ventilation hole plug from the old battery to the ventilation hole on the side to which the battery hose is not connected.
REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 25

REMOVE TOOL BOX

Remove the tool box.

GTY810844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

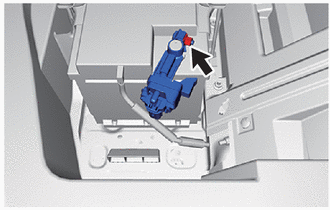

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Loosen the nut, and disconnect the cable from the negative (-) battery terminal.

GTY1236883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE BATTERY

Detach the claw and disconnect the battery terminal cap.

GTY810639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the clamp spring assembly of the positive (+) battery terminal from the battery.

GTY794526

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect clamp spring assembly in this direction

Loosen the nut and disconnect the cable from the positive (+) battery terminal.

GTY810866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 nuts and battery clamp sub-assembly.

GTY810859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the battery hose from the battery.

GTY810860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the battery.

Lift up and pull the battery along the slope to remove it as shown in the illustration.

GTY793797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Lift and pull in this direction
*a	Slope
