Reassembly [12/2017 - 10/2020]: Procedure

  1. INSTALL LUGGAGE COMPARTMENT DOOR CUSHION

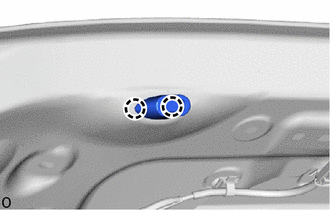

    1. Attach the claw and install the luggage compartment door cushion.
      GTY782633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH and LH sides.

  2. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH

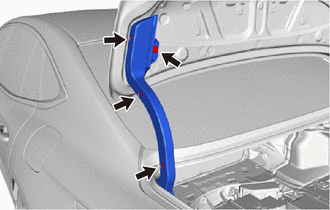

    1. Install the luggage compartment door hinge cover LH with the 4 clips.
      GTY782632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH

    HINT:

    Use the same procedure for the RH and LH sides.

  4. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER

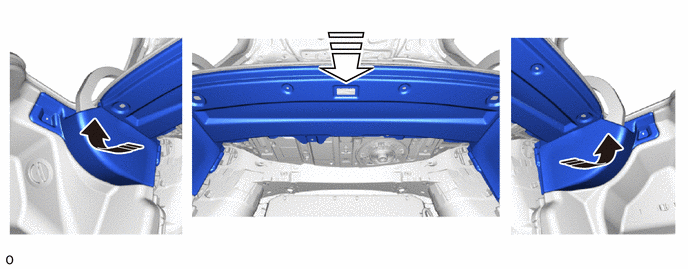

    1. While bending the rear luggage compartment trim cover toward the inside of the vehicle, install it to the luggage compartment.
      GTY836148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1) Install in this Direction (2)

      HINT:

      Do not bend the rear luggage compartment trim cover so far that it breaks.

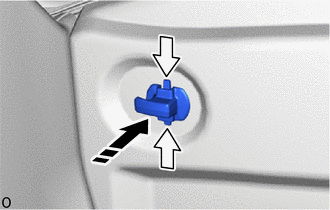

    2. Push the lever in the direction of the arrow shown in the illustration and install the rope hook.

      HINT:

      Use the same procedure for the opposite side.

      GTY783211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      Push

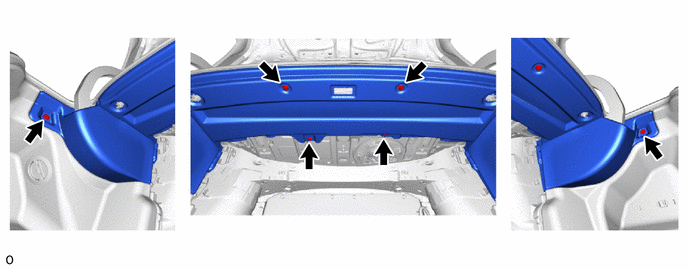

    3. Install the rear luggage compartment trim cover with the 6 clips.
      GTY782635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

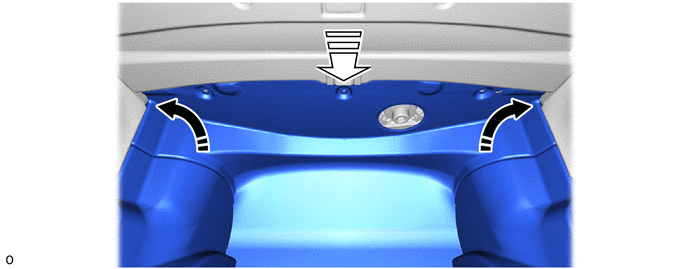

    1. While bending the front luggage compartment trim cover toward the inside of the vehicle, install it to the luggage compartment.
      GTY967753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1) Install in this Direction (2)

      HINT:

      Do not bend the front luggage compartment trim cover so far that it breaks.

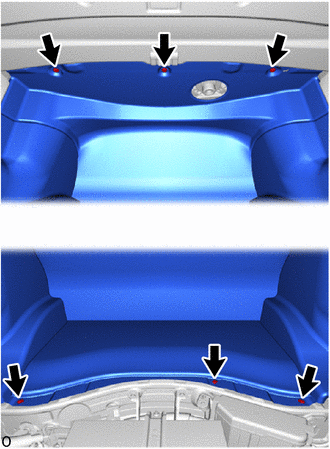

    2. Install the front luggage compartment trim cover with the 6 clips.
      GTY966729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL INNER LOWER LUGGAGE COMPARTMENT TRIM COVER

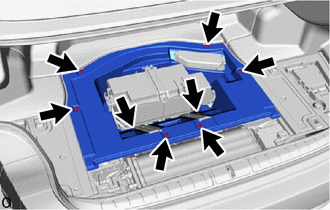

    1. Install the inner lower luggage compartment trim cover with the 8 clips.

      HINT:

      Install the inner lower luggage compartment trim cover so that its edge is not folded between the auxiliary battery and body.

      GTY828928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

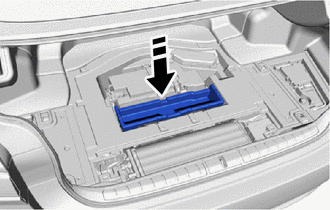

  8. INSTALL TOOL BOX
    1. Install the tool box.
      NOTE:
      • Make sure there are no gaps or looseness.
      • If there are gaps from the installation of the tool box, the luggage compartment mat sub-assembly cannot be neatly installed.
      GTY805611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  9. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

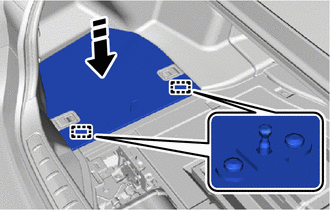

    1. Attach the pin and install the luggage compartment trim cover LH as shown in the illustration.
      GTY802193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  10. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH

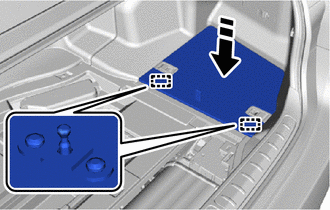

    1. Attach the pin and install the luggage compartment trim cover RH as shown in the illustration.
      GTY824663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  11. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

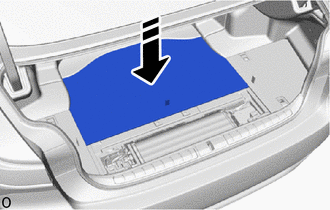

    1. Install the luggage compartment mat sub-assembly as shown in the illustration.
      GTY836762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  12. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

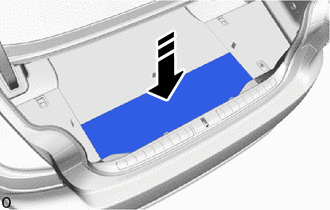

    1. Install the luggage compartment floor mat as shown in the illustration.
      GTY785937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL LICENSE PLATE LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  14. INSTALL LUGGAGE ELECTRICAL KEY SWITCH

    See step  1

  15. INSTALL TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 2

  16. INSTALL REAR LUGGAGE TRIM CLIP

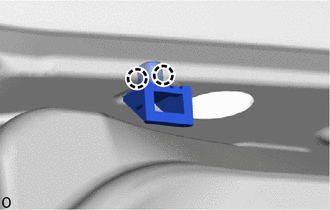

    1. Attach the claw and install the rear luggage trim clip.

      HINT:

      Use the same procedure for the RH and LH sides.

      GTY828926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  18. INSTALL UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  19. INSTALL UPPER LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH RH

    HINT:

    Use the same procedure for the RH and LH sides.

  20. INSTALL REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  21. INSTALL REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure for the RH and LH sides.

  22. INSTALL LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Install the luggage door lock control cable sub-assembly to the luggage compartment door lock cylinder assembly.
      GTY782677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL LUGGAGE COMPARTMENT KEY CYLINDER PROTECTOR
    1. Install the luggage compartment key cylinder protector with the nut.
      GTY782676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

  24. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

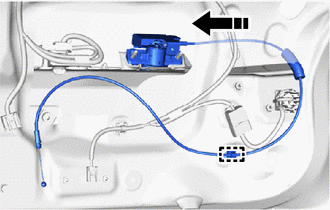

    1. Pull the luggage door lock control cable sub-assembly into the luggage compartment door panel as shown in the illustration.
      GTY828318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Pull
    2. Attach the clamp.

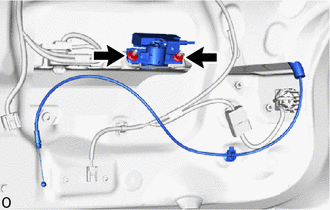

    3. Install the luggage compartment door lock cylinder assembly with the 2 nuts.
      GTY782667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

  25. INSTALL LUGGAGE LOCK CONTROL CABLE CLAMP

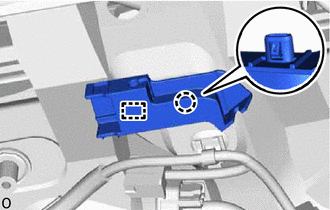

    1. Attach the guide and claw to install the luggage lock control cable clamp.
      GTY797683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL LUGGAGE DOOR CLOSER ASSEMBLY

    Refer to PROCEDURE - Step 1

  27. INSTALL LUGGAGE DOOR LOCK CONTROL CABLE SUB-ASSEMBLY

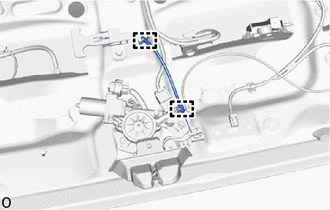

    1. Attach the clamp to install the luggage door lock control cable sub-assembly.
      GTY797680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL DOOR CONTROL SWITCH

    See step  1

  29. INSTALL LUGGAGE COMPARTMENT DOOR COVER

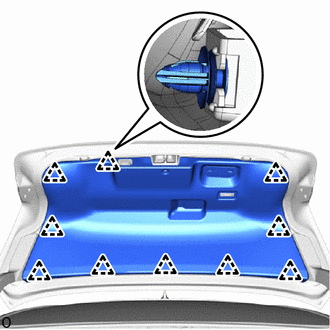

    1. Attach the clip and install the luggage compartment door cover.
      GTY782666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

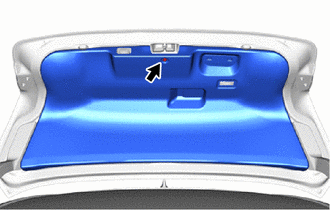

    2. Install the clip.
      GTY782665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  31. INSTALL SWITCH BEZEL

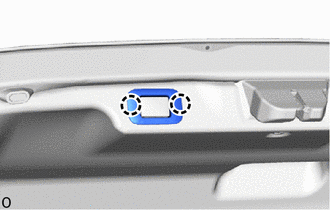

    1. Attach the claw and install the switch bezel.
      GTY782664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

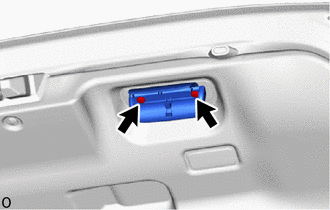

    1. Install the luggage compartment door assist grip with the 2 screws.
      GTY782658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

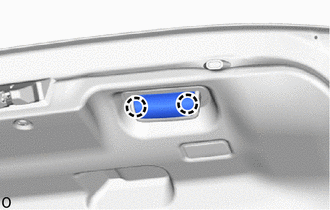

    2. Attach the claw and close the cover.
      GTY782657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE

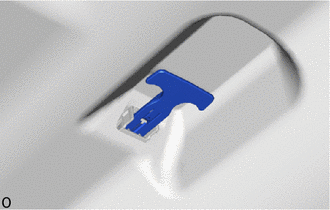

    1. Install the luggage compartment door inside handle to the luggage door lock control cable sub-assembly.
      GTY832202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE

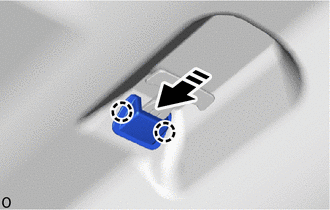

    1. Attach the claws to install the luggage lock control cable plate as shown in the illustration.
      GTY807380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  35. INITIALIZE POWER TRUNK LID CONTROL SYSTEM (w/ Power Trunk Lid System)

    HINT:

    When the luggage compartment door is opened using a mechanical key.

    Refer to INITIALIZATION [12/2017 - 10/2020]

  36. ADJUST REAR TELEVISION CAMERA ASSEMBLY
    1. w/ Parking Assist Monitor System:

      Refer to CALIBRATION [12/2017 - 10/2022]

    2. w/ Panoramic View Monitor System:

      Refer to CALIBRATION [12/2017 - 10/2020]
