Installation [12/2017 - ]: Procedure

  1. INSTALL REAR LIGHT ASSEMBLY LH

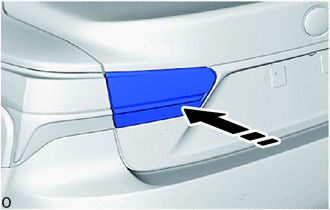

    1. Set the rear light assembly LH into place.
      GTY821981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the 2 nuts and 2 cap nuts.

      Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

      GTY813558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
      *b Cap Nut
    3. Connect the connector.
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 29 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 30 [10/2020 - ]

  3. INSTALL NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. INSTALL SWITCH BEZEL

    Refer to PROCEDURE - Step 31 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 32 [10/2020 - ]

  5. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 32 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 33 [10/2020 - ]

  6. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE

    Refer to PROCEDURE - Step 33 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 34 [10/2020 - ]

  7. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE

    Refer to PROCEDURE - Step 34 [12/2017 - 10/2020] , or refer to PROCEDURE - Step 35 [10/2020 - ]
