Removal [12/2017 - ]: Procedure

Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

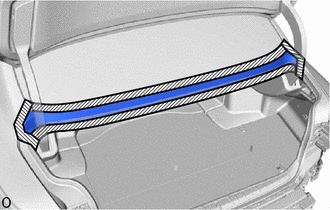

1. Apply protective tape around the back window lower outside moulding as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

2. Using a moulding remover B, detach the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

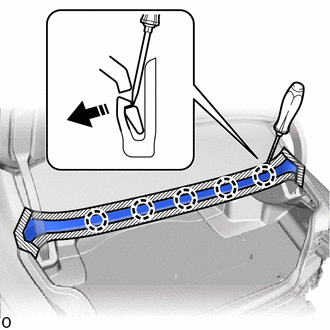

3. Using a thin-bladed screwdriver, detach the claw as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

4. With the claw detached, lift the back window lower outside moulding toward the top of the vehicle, and then remove the back window lower outside moulding.
   NOTE:

   If the claw is damaged, replace the No. 1 windshield outside moulding clip with a new one.

   HINT:

   Detach the claws individually and do not use excessive force.

HINT:

Perform the following procedure when replacing the No. 1 windshield outside moulding clip.

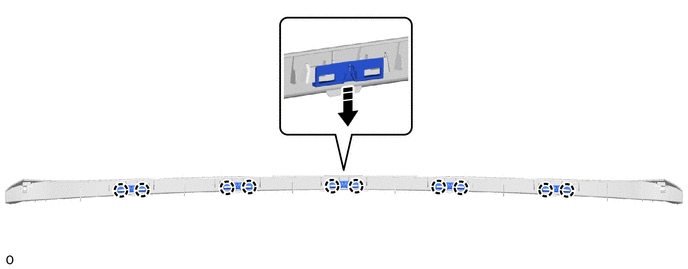

1. Detach the claw and remove the 5 No. 1 windshield outside moulding clips as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

HINT:

Perform the following procedure when replacing the No. 3 windshield outside moulding clip.

1. Set a 4.0 mm diameter drill bit into an air drill.
2. Wind vinyl tape around the 4.0 mm diameter drill bit 5.0 mm from the tip of the drill.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wind Vinyl Tape

   Standard Value

   Area	Standard Value
   A	5.0 mm (0.197 in.)

   HINT:

   Wind vinyl tape around the drill bit to prevent drilling too deep.

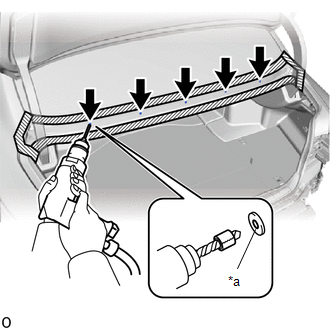

3. Lightly press the air drill against the No. 3 windshield outside moulding clip, drill off the flanges of the No. 3 windshield outside moulding clip and remove the 5 No. 3 windshield outside moulding clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Flanges

   WARNING:

   Be careful of the drilled No. 3 windshield outside moulding clip, as it is hot.

   NOTE:

   • Protect the vehicle and be careful, as shards of the drilled No. 3 windshield outside moulding clip may scatter.
   • Pressing the air drill excessively will cause the No. 3 windshield outside moulding clip to turn and result in the No. 3 windshield outside moulding clip not being drilled.
   • Do not pry the No. 3 windshield outside moulding clip with the air drill. This may cause damage to the installation holes of the No. 3 windshield outside moulding clip or the drill bit.

HINT:

When removing the luggage compartment door cover LH, heat the vehicle body and luggage compartment door cover LH using a heat light.

Standard

WARNING:

• Do not touch the heat light and heated parts.
• Touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

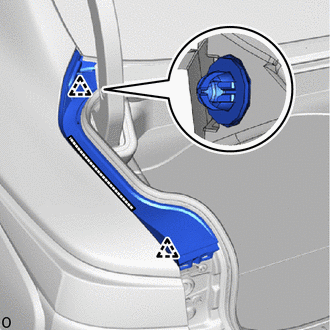

1. Using a clip remover, detach the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Double-sided Tape

2. Remove the double-sided tape and luggage compartment door cover LH.

HINT:

Use the same procedure for the RH and LH sides.

Refer to PROCEDURE - Step 23 [12/2017 - 10/2020] , or see step  24 [10/2020 - 10/2022], or see step  24 [10/2022 - ]

Refer to PROCEDURE - Step 25 [12/2017 - 10/2020] , or see step  26 [10/2020 - 10/2022], or see step  26 [10/2022 - ]

Refer to PROCEDURE - Step 26 [12/2017 - 10/2020] , or see step  27 [10/2020 - 10/2022], or see step  27 [10/2022 - ]

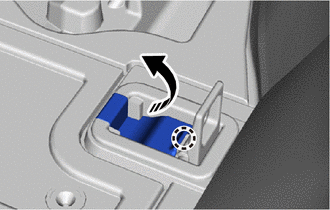

1. Detach the claw and open the cap.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Open

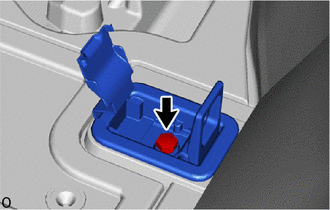

2. Remove the bolt and rope hook assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the RH and LH sides.

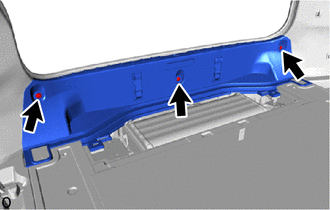

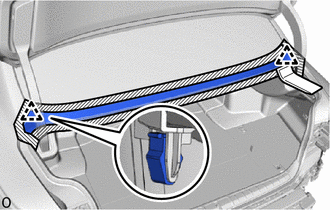

1. Using a clip remover, remove the 3 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

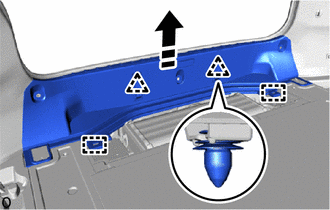

2. Detach the clip and guide and remove the rear floor finish plate.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

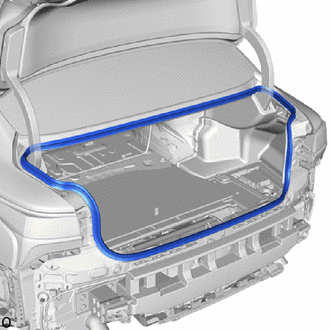

1. While avoiding the luggage compartment door, remove the luggage compartment door weatherstrip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   When removing, make sure that non-drying sealer does not adhere to the body and luggage compartment door.
