Removal [12/2017 - 09/2018]: Procedure

  1. PRECAUTION
    WARNING:

    Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [12/2017 - 10/2020]

    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [12/2017 - 10/2020]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

    WARNING:
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      Refer to PRECAUTION [12/2017 - 10/2020]

    • If the airbag deploys for any reason, it may cause a serious accident.
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2017 - 09/2018]

  4. REMOVE REAR SEAT ASSEMBLY (w/o Rear Seat Entertainment System)

    Refer to REMOVAL [12/2017 - 09/2018]

  5. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY (w/o Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 7

  6. REMOVE CENTER ARMREST HINGE COVER (w/o Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 19

  7. REMOVE REAR CENTER NO. 2 SEAT ARMREST PANEL SUB-ASSEMBLY (w/o Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 20

  8. REMOVE REAR CENTER SEAT ARMREST PANEL SUB-ASSEMBLY (w/o Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 24

  9. REMOVE REAR CENTER NO. 2 SEAT ARMREST PANEL (w/o Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 21

  10. REMOVE REAR CENTER SEAT ARMREST CUP HOLDER SUB-ASSEMBLY (w/o Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 23

  11. REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY (w/o Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 25

  12. REMOVE REAR CENTER SEAT ARMREST COVER SUB-ASSEMBLY (w/o Rear Seat Entertainment System)
    1. Detach the hook and remove the rear center seat armrest cover sub-assembly.
      GTY778497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE USB CHARGER SOCKET (w/o Rear Seat Entertainment System)

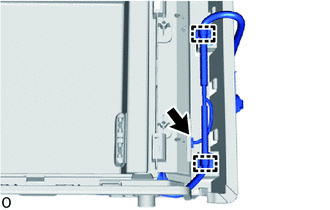

    1. Detach the clamp.
      GTY833348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.

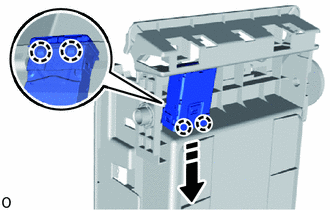

    3. Detach the claw and remove the USB charger socket.
      GTY785640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  14. REMOVE REAR CENTER SEAT CUSHION ASSEMBLY (w/ Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 6

  15. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY (w/ Rear Seat Entertainment System)

    Refer to PROCEDURE - Step 10

  16. REMOVE REAR POWER SEAT SWITCH (w/ Rear Seat Entertainment System)

    Refer to REMOVAL [12/2017 - 09/2018]

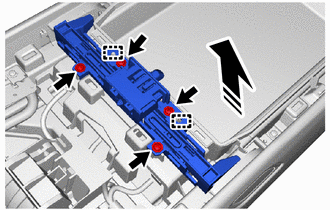

  17. REMOVE CENTER ARMREST LOCK SUB-ASSEMBLY (w/ Rear Seat Entertainment System)
    GTY790972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Remove in this Direction
    Screw
    1. Remove the 4 screws and center armrest lock sub-assembly.
  18. REMOVE REAR CENTER SEAT ARMREST DOOR SUB-ASSEMBLY (w/ Rear Seat Entertainment System)

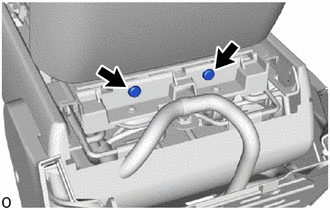

    1. Remove the 2 console compartment door hinge shafts.
      GTY833912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

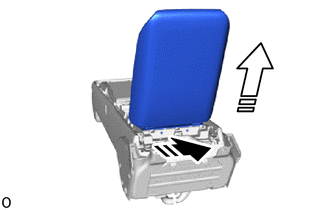

    2. Slide the rear center seat armrest door sub-asembly in the removal direction (1) shown in the illustration and detach the hinge.
      GTY830461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Remove the rear center seat armrest door sub-assembly in the removal direction (2) shown in the illustration.
  19. REMOVE REAR CENTER NO. 2 SEAT ARMREST BOX (w/ Rear Seat Entertainment System)

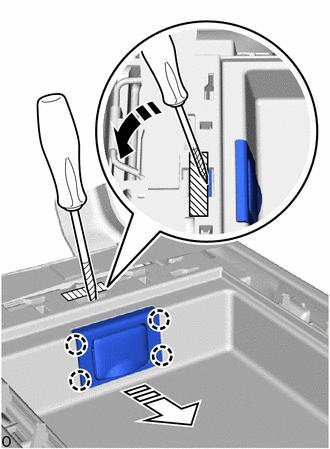

    1. Apply protective tape to the rear center No. 2 seat armrest box to prevent damage.
      GTY798430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Incline in this Direction
      Remove in this Direction
      Protective tape
    2. Insert a thin-bladed screwdriver with its tip wrapped with protective tape and push the HDMI cable cover toward the front of the vehicle.

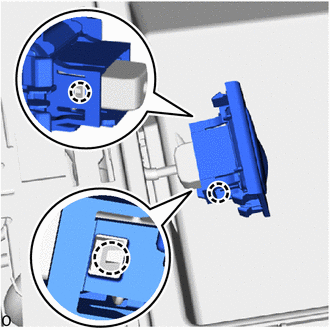

    3. Detach the claw and disconnect wire harness from the HDMI cable cover.
      GTY802900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

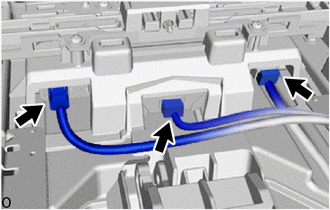

    4. Disconnect the 3 connectors.
      GTY802908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

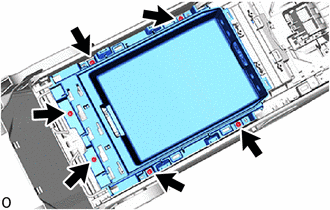

    5. Remove the 6 screws.
      GTY801739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

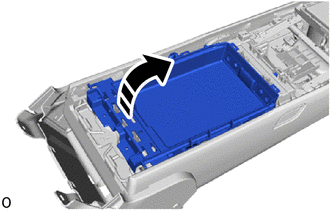

    6. Tilt the rear center No. 2 seat armrest box in the direction indicated by the arrow as shown in the illustration.
      GTY802527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Tilt in this Direction

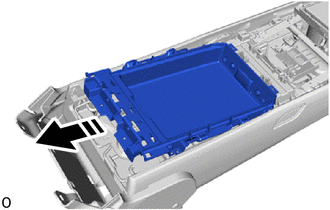

    7. Remove the rear center No. 2 seat armrest box as shown in the illustration.
      GTY813490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE HEADPHONE TERMINAL (for RH Side, w/ Rear Seat Entertainment System)

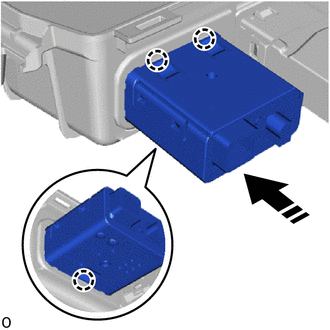

    1. Detach the claw and remove the headphone terminal as shown in the illustration.
      GTY795273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  21. REMOVE HEADPHONE TERMINAL (for LH Side, w/ Rear Seat Entertainment System)

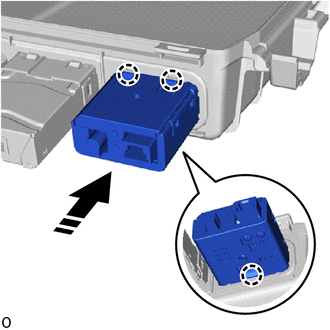

    1. Detach the claw and remove the headphone terminal as shown in the illustration.
      GTY810475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  22. REMOVE USB CHARGER SOCKET (w/ Rear Seat Entertainment System)

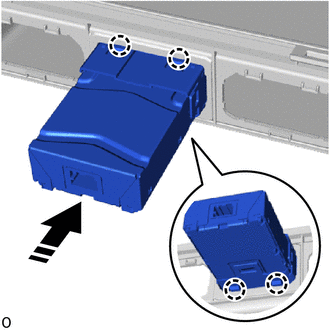

    1. Detach the claw and remove USB charger socket as shown in the illustration.
      GTY779661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
