Removal [10/2022 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 24

  3. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 28

  4. REMOVE LOWER INNER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29

  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 27

  6. REMOVE ROPE HOOK ASSEMBLY

    Refer to PROCEDURE - Step 10

  7. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 11

  8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 30

  9. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 32

  11. REMOVE SIDE TRIM BOX

    Refer to PROCEDURE - Step 14 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 14 [10/2023 - ]

  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH

    Refer to PROCEDURE - Step 15 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 15 [10/2023 - ]

  13. REMOVE MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY WITH BRACKET

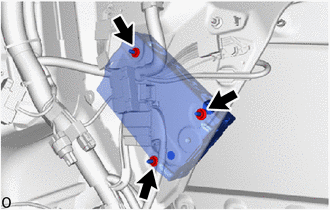

    1. Detach the 3 nuts and remove the multi-display controller with bracket sub-assembly from the vehicle.
      GTY1134289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the multi-display controller with bracket sub-assembly.
      GTY1136099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 TELEVISION BRACKET
    1. Remove the 2 screws and No. 2 television bracket.
      GTY1136100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 TELEVISION BRACKET
    1. Remove the 2 screws and No. 1 television bracket.
      GTY1134290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY
