Removal [10/2022 - 10/2023]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to PRECAUTION [11/2021 - 10/2023]

    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - 10/2023]

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

    WARNING:
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
  4. REMOVE REAR SEAT ASSEMBLY
    1. for Fixed Seat Type:

      Refer to REMOVAL [10/2022 - 10/2023]

    2. for Power Seat:

      Refer to REMOVAL [10/2022 - 10/2023]

  5. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 15

  6. REMOVE REAR DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 16

  7. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 23

  8. REMOVE REAR SEAT SIDE GARNISH RH

    Refer to PROCEDURE - Step 24

  9. REMOVE ROOM PARTITION BOARD ASSEMBLY LH (for Power Seat)

    Refer to PROCEDURE - Step 17

  10. REMOVE ROOM PARTITION BOARD ASSEMBLY RH (for Power Seat)

    Refer to PROCEDURE - Step 18

  11. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 27

  12. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH

    Refer to PROCEDURE - Step 28

  13. REMOVE PACKAGE TRAY TRIM GARNISH LH

    Refer to PROCEDURE - Step 29

  14. REMOVE PACKAGE TRAY TRIM GARNISH RH

    Refer to PROCEDURE - Step 30

  15. REMOVE PACKAGE TRAY TRIM SIDE COVER LH

    Refer to PROCEDURE - Step 31

  16. REMOVE PACKAGE TRAY TRIM SIDE COVER RH

    Refer to PROCEDURE - Step 32

  17. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 33

  18. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    Refer to PROCEDURE - Step 34

  19. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY
    1. Disconnect the 2 connectors.

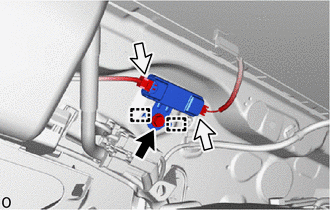

      GTY777298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Remove the bolt.
    3. Detach the guide and remove the No. 1 amplifier antenna assembly.
  20. REMOVE NO. 2 AMPLIFIER ANTENNA ASSEMBLY
    1. Disconnect the 2 connectors.

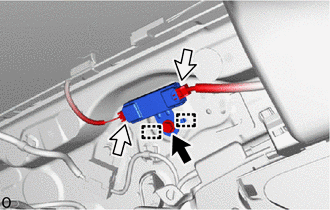

      GTY795399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Remove the bolt.
    3. Detach the guide and remove the No. 2 amplifier antenna assembly.
