Removal [12/2017 - ]: Procedure

REMOVE REAR UPPER DOOR TRIM COVER LH
Refer to PROCEDURE - Step 4 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 4 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 4 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 4 [10/2023 - ]
REMOVE REAR DOOR ARMREST COVER LH
Refer to PROCEDURE - Step 5 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 5 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 5 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 5 [10/2023 - ]
REMOVE REAR NO. 2 DOOR ARMREST COVER LH
Refer to PROCEDURE - Step 6 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 6 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 6 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 6 [10/2023 - ]
REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 7 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 7 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 7 [10/2023 - ]

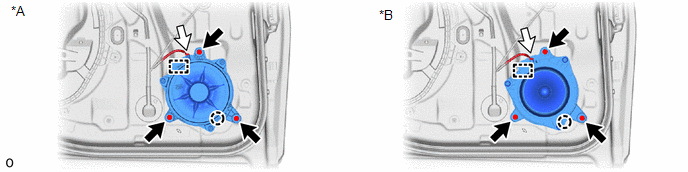

REMOVE REAR SPEAKER ASSEMBLY

NOTE:

Do not touch the cone section of the rear speaker assembly

Detach the guide and remove the rear speaker assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 12 Speakers	*B	for 24 Speakers
	Screw		Connector

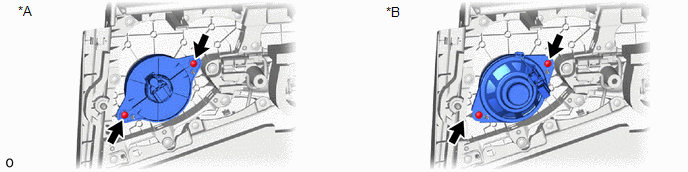

REMOVE REAR NO. 2 SPEAKER ASSEMBLY

NOTE:

Do not touch the cone section of the rear No. 2 speaker assembly

Remove the 2 screws and No. 2 rear speaker assembly.

for 12 Speakers

for 24 Speakers
