Reassembly [12/2017 - 10/2020]: Procedure

  1. INSTALL GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

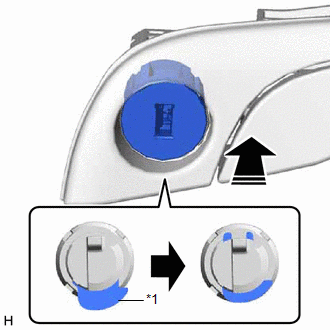

    1. GTY835399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cylinder Lock
      Install in this Direction

      With the cylinder lock pressed, insert the glove compartment door lock cylinder assembly into the glove compartment door assembly to install it as shown in the illustration.

  2. INSTALL GLOVE COMPARTMENT DOOR LOCK ASSEMBLY

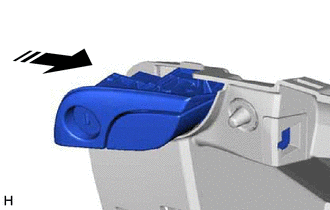

    1. GTY807686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

      Set the glove compartment door lock assembly in the direction indicated by the arrow shown in the illustration.

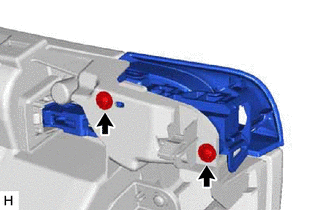

    2. GTY815837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the glove compartment door lock assembly with the 2 screws.

  3. INSTALL COIN BOX ASSEMBLY

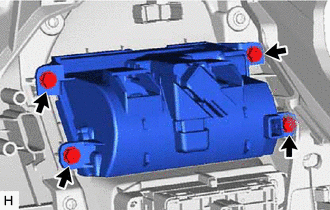

    1. GTY815838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the coin box assembly with the 4 screws.

  4. INSTALL NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Attach the clip to install the No. 2 instrument panel safety pad sub-assembly.

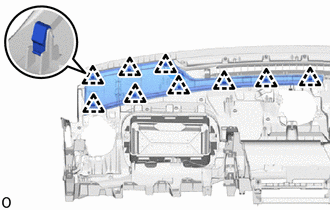

      GTY966229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 4 HEATER TO REGISTER DUCT SUB-ASSEMBLY
    1. Install the No. 4 heater to register duct sub-assembly with the 2 screws <A>.

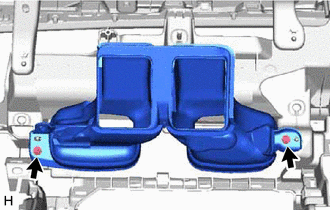

      GTY795322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <A>
  6. INSTALL NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 3

  7. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. INSTALL NO. 2 INSTRUMENT PANEL WIRE

    Refer to PROCEDURE - Step 2

  9. INSTALL DEFROSTER NOZZLE ASSEMBLY
    1. w/ Headup Display:
      1. Install the defroster nozzle assembly with the 4 screws <A>.

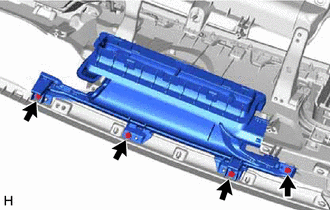

        GTY795375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Screw <A>
    2. w/o Headup Display:
      1. Install the defroster nozzle assembly with the 5 screws <A>.

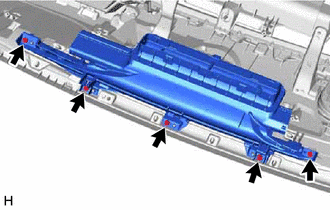

        GTY803775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Screw <A>
  10. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. w/ Headup Display:
      1. Install the No. 1 side defroster nozzle duct with the 2 screws <A>.

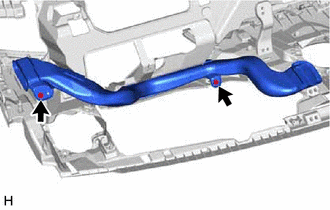

        GTY781583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Screw <A>
    2. w/o Headup Display:

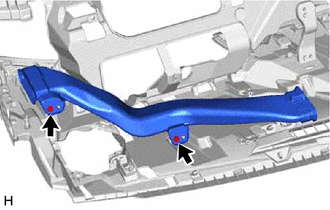

      1. Install the No. 1 side defroster nozzle duct with the 2 screws <A>.
        GTY790282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Screw <A>
  11. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
    1. Install the No. 2 side defroster nozzle duct with the 2 screws <A>.

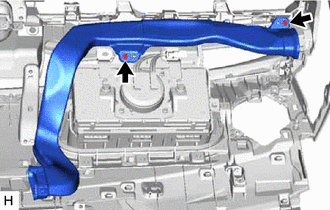

      GTY774781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <A>
  12. INSTALL NO. 5 HEATER TO REGISTER DUCT
    1. Install the No. 5 heater to register duct with the 4 screws <A>.

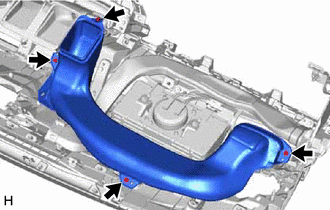

      GTY799723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <A>
