Disassembly [12/2017 - 10/2020]: Procedure

  1. REMOVE NO. 5 HEATER TO REGISTER DUCT

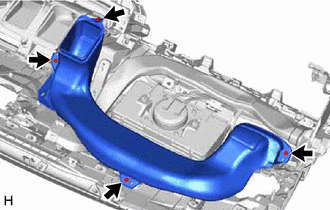

    1. Remove the 4 screws <A> and the No. 5 heater to register duct.
      GTY799722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <A>
  2. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

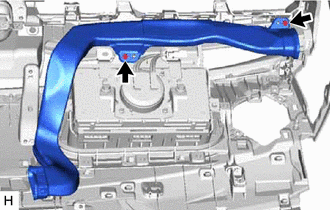

    1. Remove the 2 screws <A> and the No. 2 side defroster nozzle duct.
      GTY774780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <A>
  3. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
    1. w/ Headup Display:

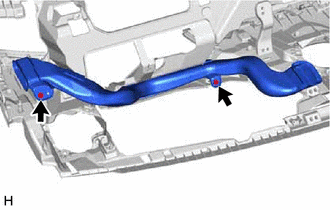

      1. Remove the 2 screws <A> and the No. 1 side defroster nozzle duct.
        GTY781585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Screw <A>
    2. w/o Headup Display:

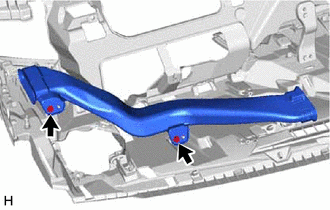

      1. GTY790284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Screw <A>

        Remove the 2 screws <A> and the No. 1 side defroster nozzle duct.

  4. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. w/ Headup Display:

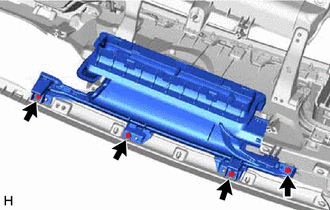

      1. Remove the 4 screws <A> and the defroster nozzle assembly.
        GTY831701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Screw <A>
    2. w/o Headup Display:

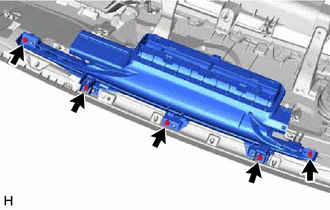

      1. GTY803774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Screw <A>

        Remove the 5 screws <A> and the defroster nozzle assembly.

  5. REMOVE NO. 2 INSTRUMENT PANEL WIRE

    Refer to PROCEDURE - Step 7 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 7 [09/2018 - 10/2020]

  6. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 8 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020]

  7. REMOVE NAVIGATION ANTENNA ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 8 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 8 [09/2018 - 10/2020]

  8. REMOVE NO. 4 HEATER TO REGISTER DUCT SUB-ASSEMBLY

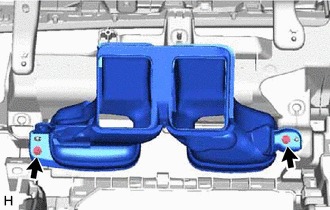

    1. Remove the 2 screws <A> and the No. 4 heater to register duct sub-assembly.
      GTY795323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw <A>
  9. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Detach the clip and remove the No. 2 instrument panel safety pad sub-assembly.
      GTY966229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE COIN BOX ASSEMBLY
    1. Remove the 4 screws and coin box assembly.
      GTY815838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE GLOVE COMPARTMENT DOOR LOCK ASSEMBLY
    1. Remove the 2 screws.
      GTY815837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

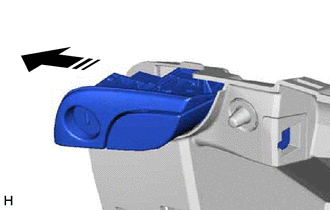

    2. Pull in the direction indicated by the arrow shown in the illustration and remove the glove compartment door lock assembly.
      GTY828339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  12. REMOVE GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

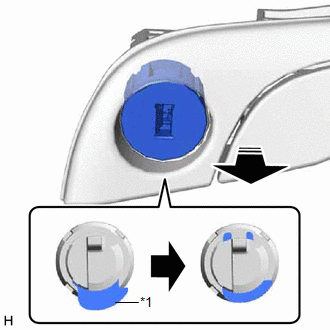

    1. GTY829864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cylinder Lock
      Remove in this Direction

      Press the cylinder lock to release it and pull out the glove compartment door lock cylinder assembly from the glove compartment door assembly to remove it as shown in the illustration.
